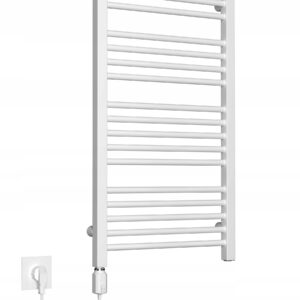

DAVE BATHROOM RADIATOR

Model: DAVE-720/450

• Width: 450 mm (A)

  Height: 720 mm (H)

  Connection spacing: 400 mm

  Heat output: 267 watts

  Colour: gloss white

  Connection: bottom

  Thread: 1/2 inch

  Material: steel

  Type of coating: powder coating

The radiator can only be connected to an electric heater or connected simultaneously to the central heating system and to the heater.

How to choose the power of a heater?

The power of the heater should be selected according to the size of the room.

The above 267W heater will heat a room with an area of 2.5m2.

Thermal and pressure parameters of the heater:

temperature 75/60/20

working pressure 0.6 MPa

test pressure 0.90 MPa

Depending on the installation in your house/apartment, you need to calculate the power of the radiator.

75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

55/45/20 – for modern condensing boilers, gas furnaces,

50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

90/70/20 – high temperature system for solid fuel boilers.

The specified radiator power is indicated for the 75/65 parameter; for other parameters, the power should be calculated according to the following information:

Add or subtract the following values from the radiator power depending on your installation:

• 55/45/20 – 50%
• 50/40/20 – 60%
• 45/35/20 – 70%
• 90/70/20 + 20%

Included:

modern air vent

mounting brackets

plastic caps for safe transport

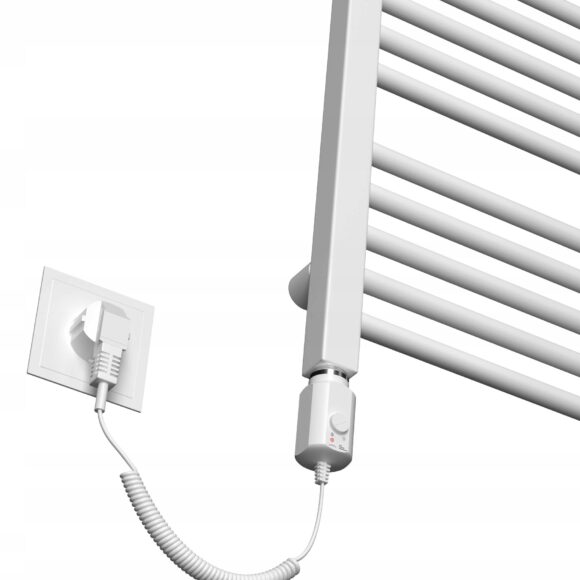

heater – 300W VOLUX – (color options: white, black chrome) – if no color is specified, we will send a white heater

CERTIFIED PRODUCT

The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability, and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.

This means you can be sure that you are receiving a product of the highest quality.

The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE (European Certificate) trademark.
