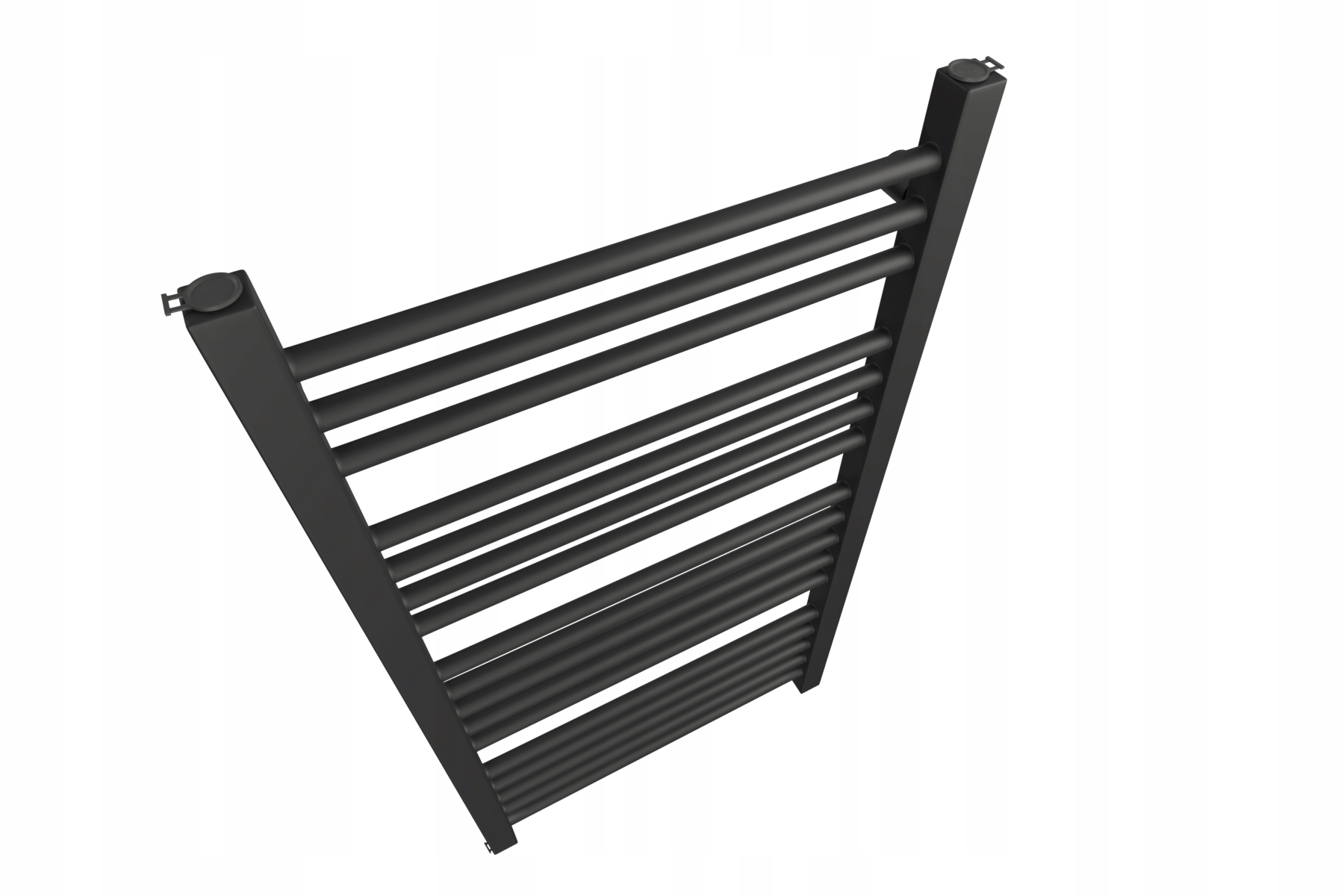

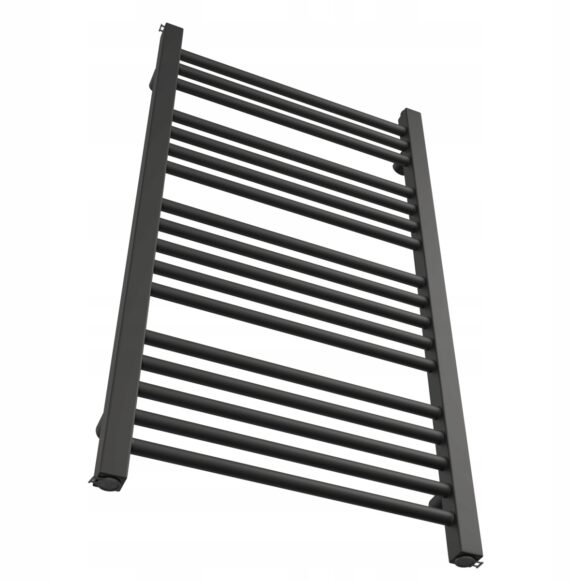

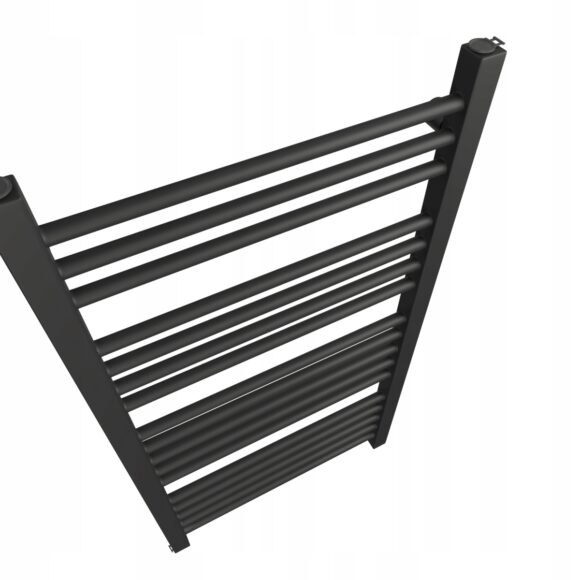

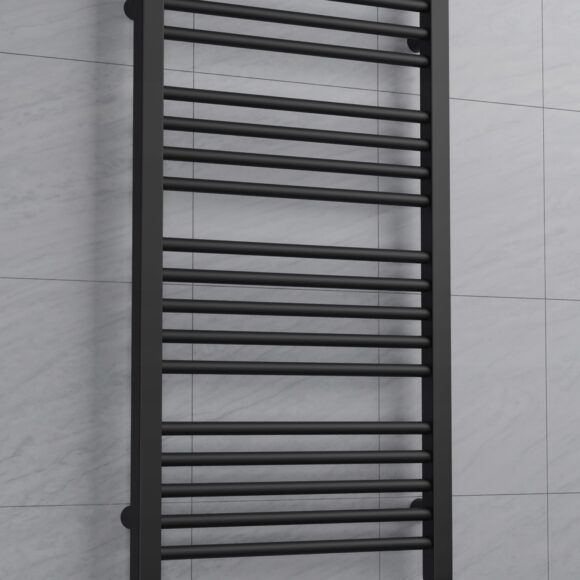

Bathroom Radiator DAVE

Model: DAVE-1350/550

• Width: 550 mm (A)

  Height: 1350 mm (H)

  Connection spacing: 500 mm (side) (B)

  Heat output: 813 watts

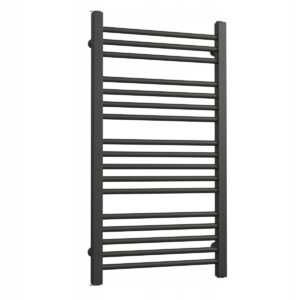

  Colour: matt black

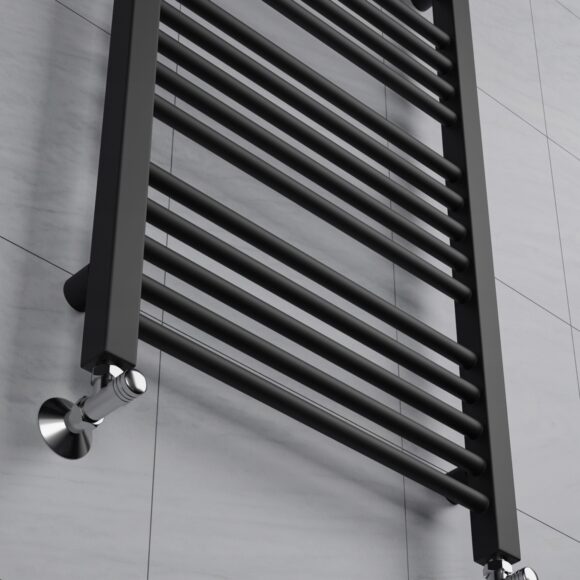

  Connection: bottom

  Thread: 1/2 inch

  Material: steel

  Type of coating: powder coating

  + Option to connect an electric heater!!!

How to choose the power of a radiator?

The power of the radiator should be selected according to the size of the room.

The above radiator with a power of 813W will heat a room with an area of 8 m².

Thermal and pressure parameters of the radiator:

temperature 75/65/20

working pressure 0.6 MPa

test pressure 0.90 MPa

Depending on the installation in your house/flat, you need to calculate the power of the radiator.

75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

55/45/20 – for modern condensing boilers, gas stoves,

50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

90/70/20 – high temperature system for solid fuel boilers.

The specified radiator output is indicated for the 75/65 parameter; for other parameters, the output should be calculated according to the following information:

Add or subtract the following values from the radiator output depending on your installation:

• 55/45/20 – 50%
• 50/40/20 – 60%
• 45/35/20 – 70%
• 90/70/20 + 25%

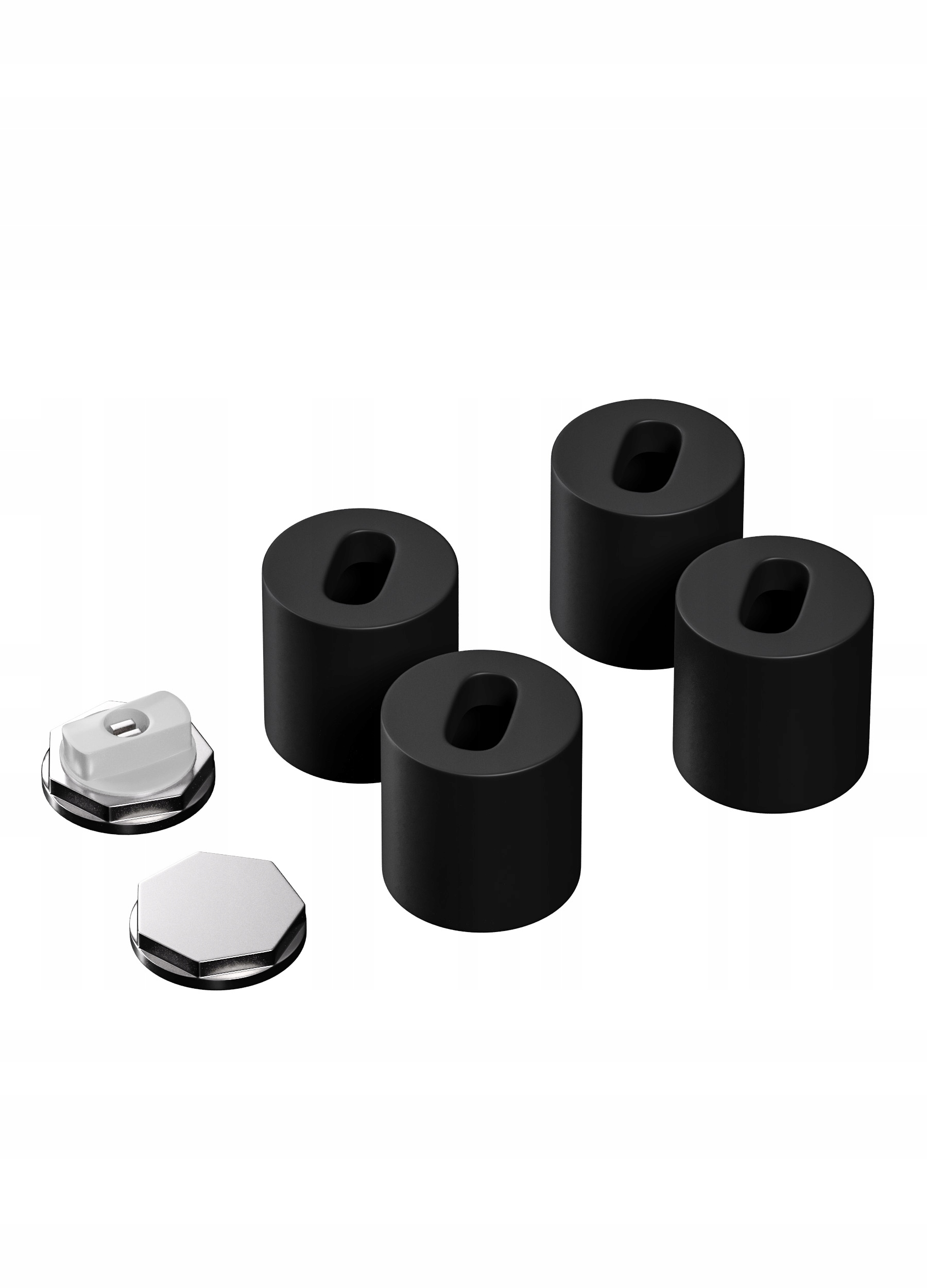

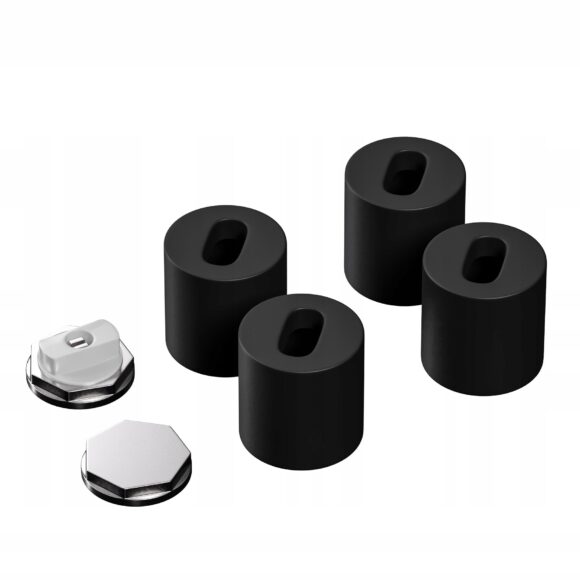

Included:

*modern vent

*mounting brackets

*plastic caps for safe transport

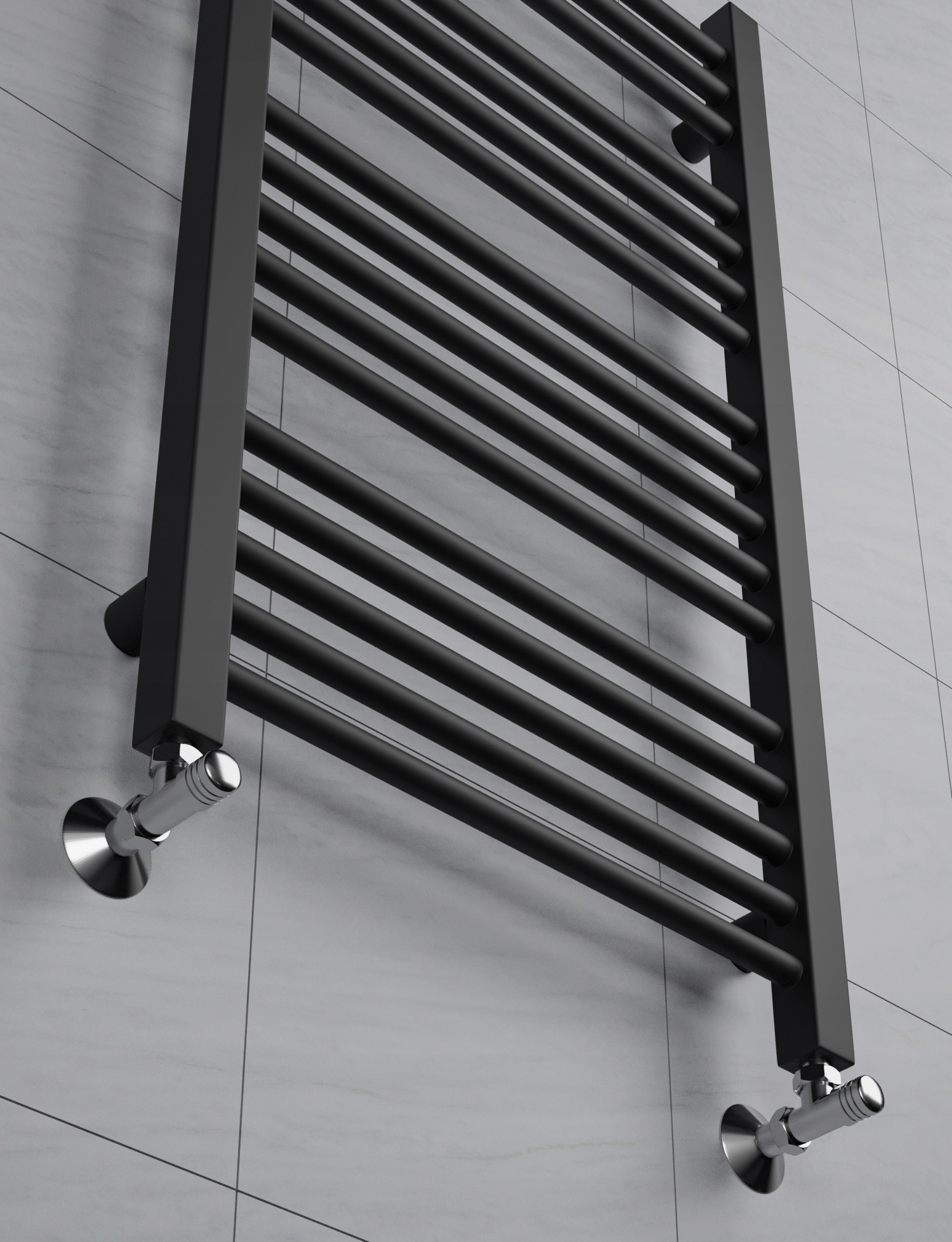

A functional bathroom radiator with bottom connection that will perfectly heat your bathroom. Its simple design makes it easy to hang and dry towels. The product is adapted for connection to an electric heater, allowing it to be used outside the heating season.

CERTIFIED PRODUCT

The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.

This means you can be sure that you are receiving a product of the highest quality.

The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE mark (European Certificate).

Get your radiator quickly – models ready for dispatch within 24 hours
