Bathroom radiators tailored to your needs!

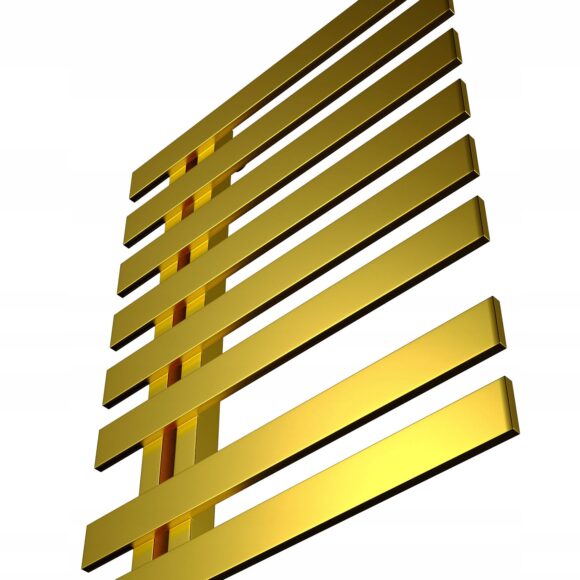

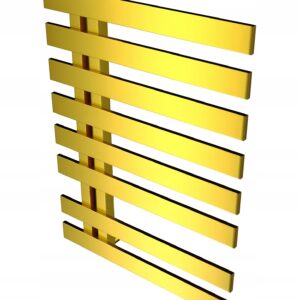

Model: FANTOM 1070×500
Width: 500 mm (A)
Height: 1070 mm (H)
Connection spacing: 50 mm
Heat output: 662 watts
Radiator colour: semi-matt gold
Connection: Bottom right connection
Thread: 1/2 inch
Material: Steel
The power of the radiator should be selected according to the size of the room.
The above radiator with a power of 662W will heat a room with an area of 6.5m².
Heater thermal and pressure parameters:
temperature 75/60/20
working pressure 0.6 MPa
test pressure 0.90 MPa
Depending on the installation in your house/flat, you need to calculate the power of the radiator.
75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks
55/45/20 – for modern condensing boilers, gas stoves,
50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,
90/70/20 – high temperature system for solid fuel boilers.
The specified heater power is indicated for the 75/65 parameter. For other parameters, the power should be calculated according to the following information:
Add or subtract the following values from the heater power depending on your installation:
*modern vent
*mounting brackets
*plastic caps for safe transport
Valves must be purchased separately – available in our other auctions!
A functional bathroom radiator with bottom side and centre connections that will perfectly heat your bathroom. Its simple design makes it easy to hang and dry towels. The product is adapted for connection to an electric heater, allowing it to be used outside the heating season.
The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.
This means you can be sure that you are receiving a product of the highest quality.
The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE mark (European Certificate).
