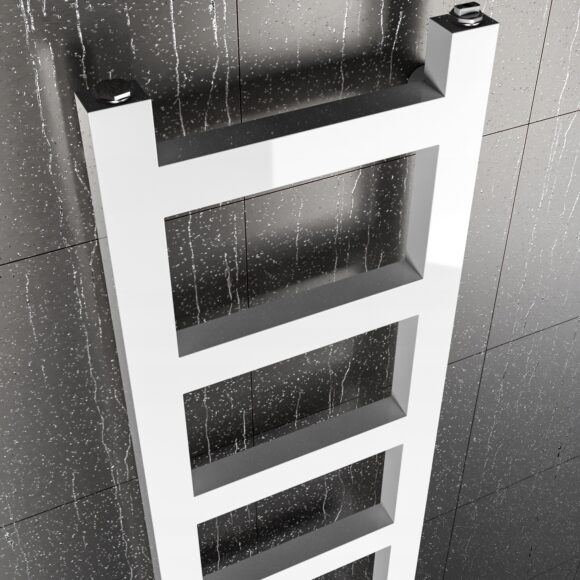

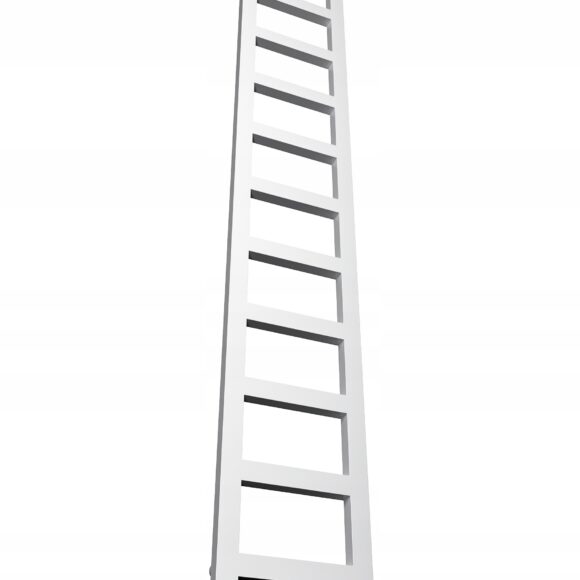

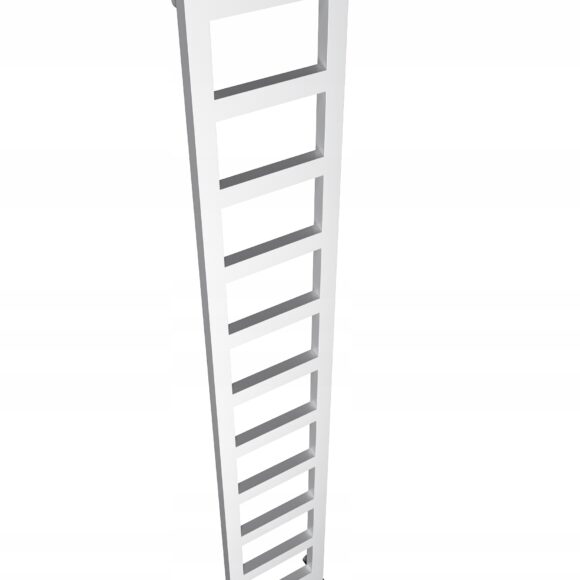

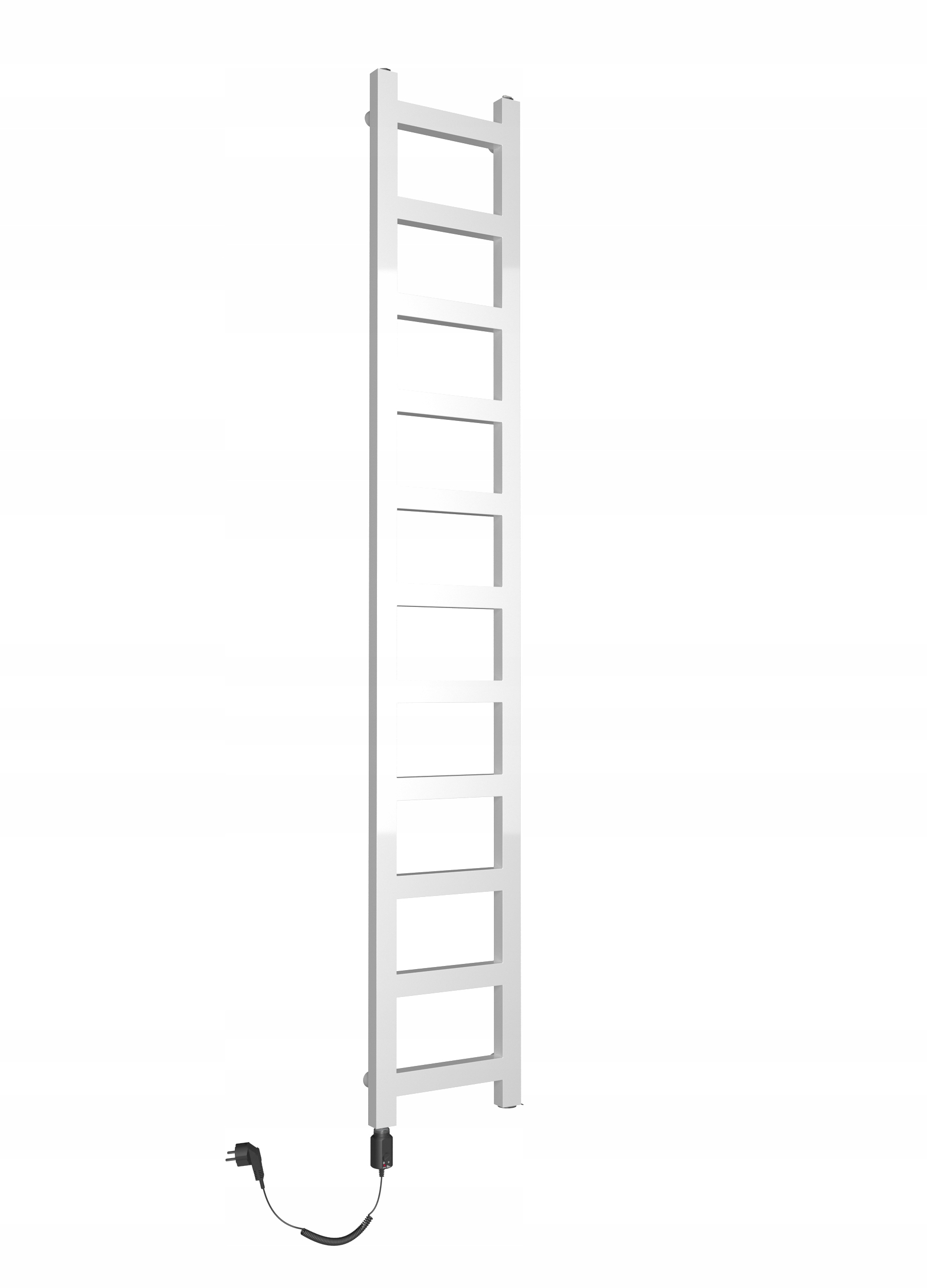

ELECTRIC BATHROOM RADIATOR WITH VOLUX ELECTRIC HEATER

Model: LUCY: 77/25

• ➡️Width: 250 mm (A)
• ➡️Height: 770 mm (H)
• ➡️Connection spacing: 220 mm (bottom)
• ➡️Heat output: 363 watts
• ➡️Colour: gloss white
• ➡️Connection: bottom
• ➡️Thread: 1/2 inch
• ➡️Material: steel
• ➡️Type of paint: powder coating

How to choose the power of a radiator?

The power of the radiator should be selected according to the size of the room.

 The above 363W radiator will heat a room with an area of 3.5 – 4 m².

 Thermal and pressure parameters of the radiator:

 ☑️temperature 75/60/20

 ☑️operating pressure 0.6 MPa

 ☑️test pressure 0.90 MPa

Depending on the installation in your house/flat, you need to calculate the power of the radiator.

 ☑️75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

 ☑️55/45/20 – for modern condensing boilers, gas furnaces,

 ☑️50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

 ☑️90/70/20 – high temperature system for solid fuel boilers.

The specified heater power is indicated for the 75/65 parameter. For other parameters, the power should be calculated according to the following information:

Add or subtract the following values from the heater power depending on your installation:

☑️55/45/20 – 50%

☑️50/40/20 – 60%

☑️45/35/20 – 70%

☑️90/70/20 + 20%

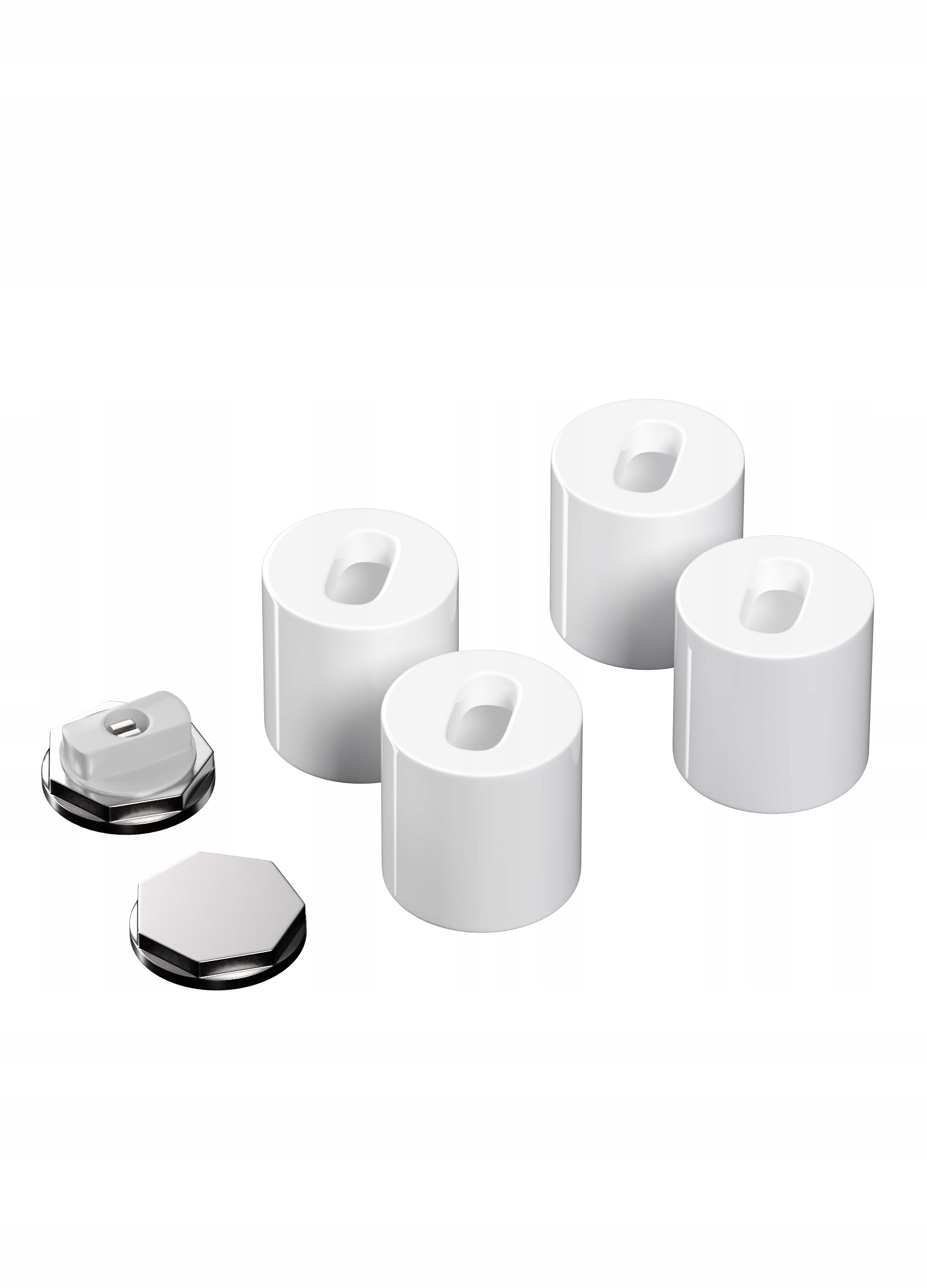

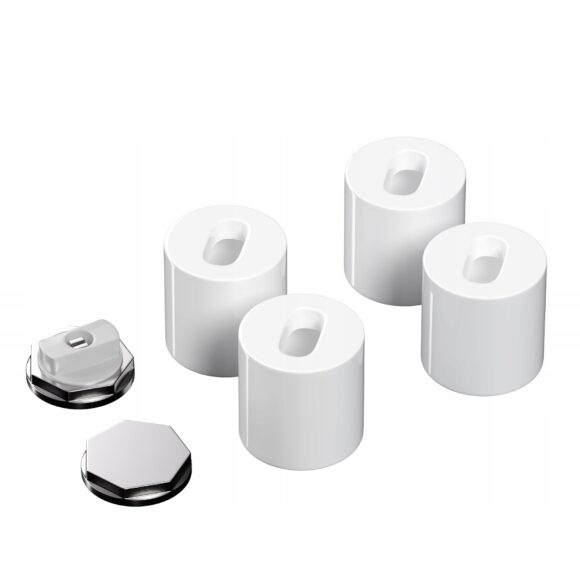

Included with the radiator:

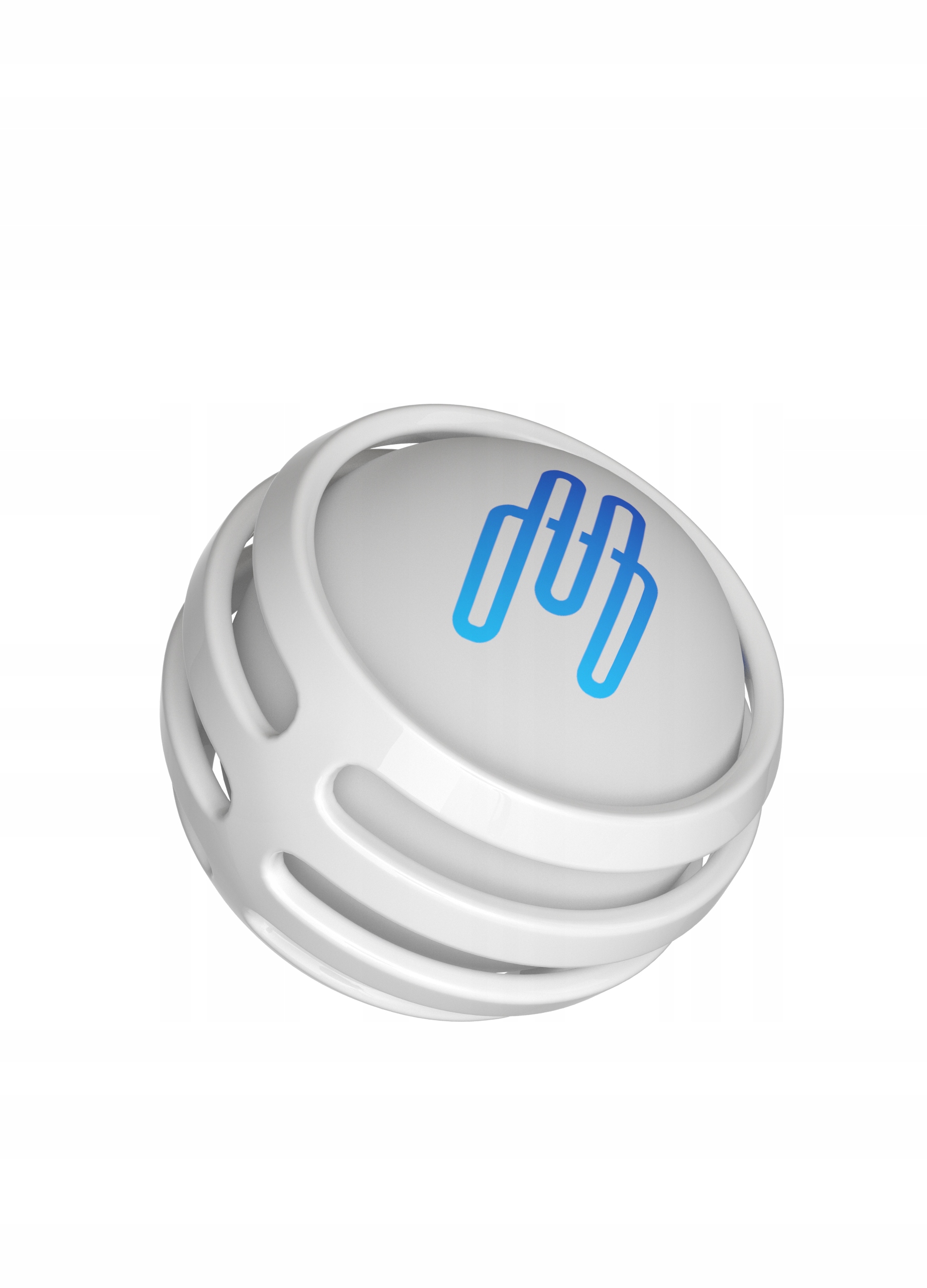

 ✅modern air vent

 ✅mounting brackets

 ✅plastic caps for safe transport

 ✅proof of purchase (e-invoice)

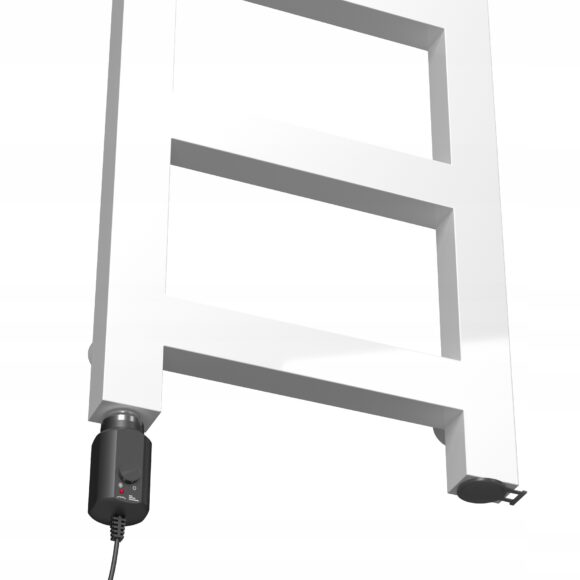

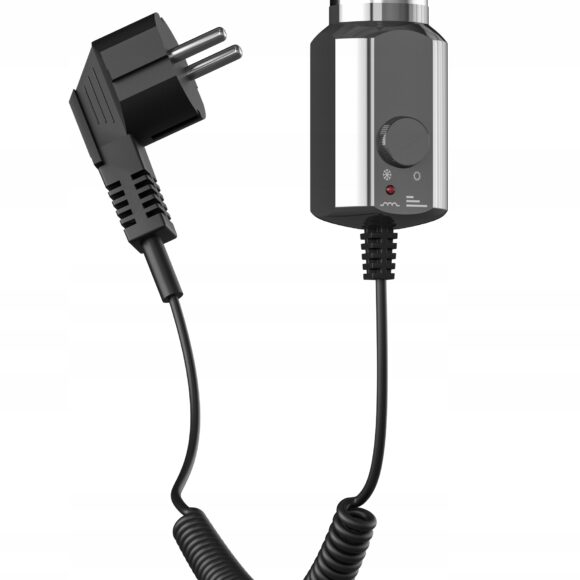

 + 300W ELECTRIC HEATER

FREE ELECTRIC HEATER!

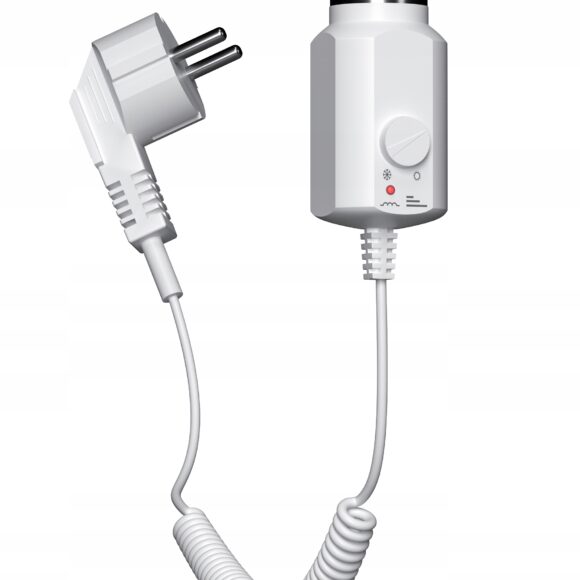

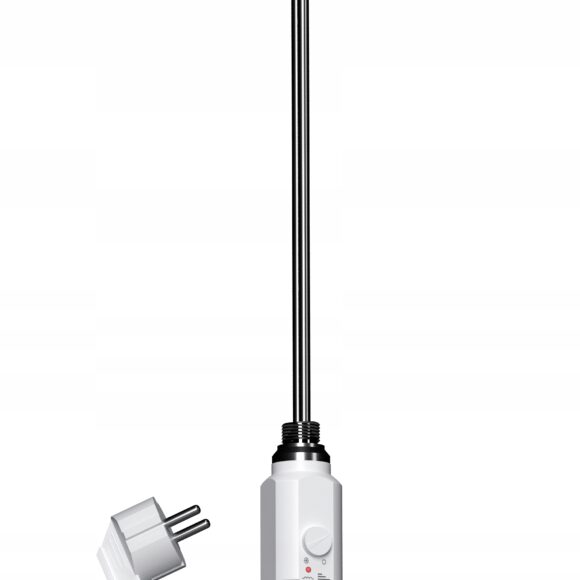

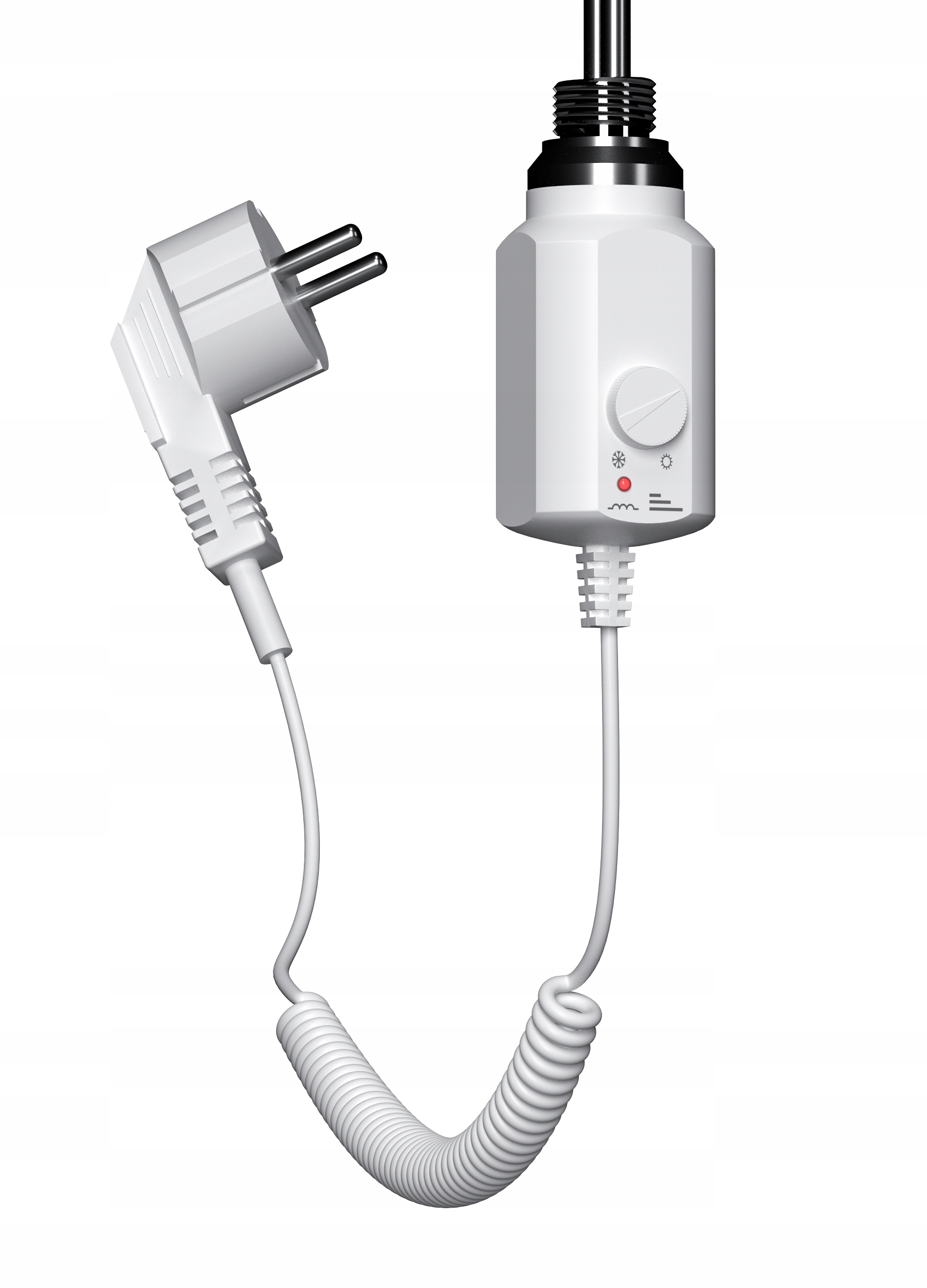

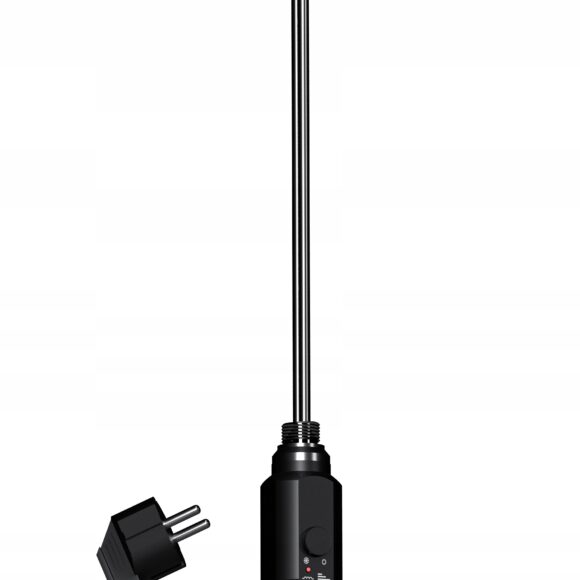

TECHNICAL DATA:

➡️POWER: 300 W

 ➡️THREAD: 1/2”

 ➡️VOLTAGE: 230V 50Hz

 ➡️RATED CURRENT: 1.3 A

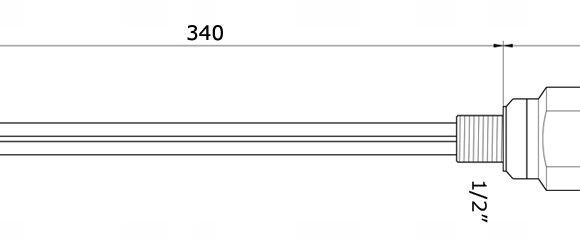

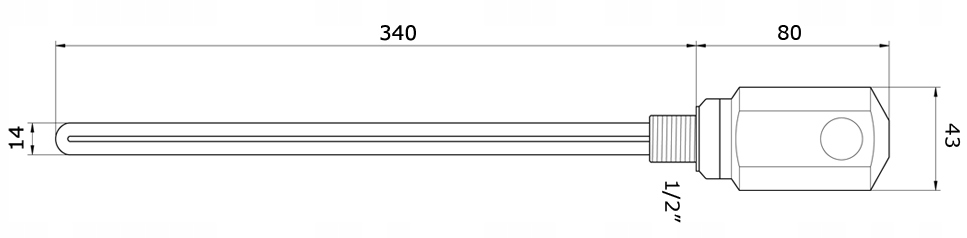

 ➡️HEATING ELEMENT LENGTH: 270 (mm)

 ➡️TEMPERATURE CONTROL: 10°C – 60°C

 ➡️CONNECTION CABLE: 3 x 0.75 mm²

 ➡️RECOMMENDED FOR HEATERS: 300W – 600W

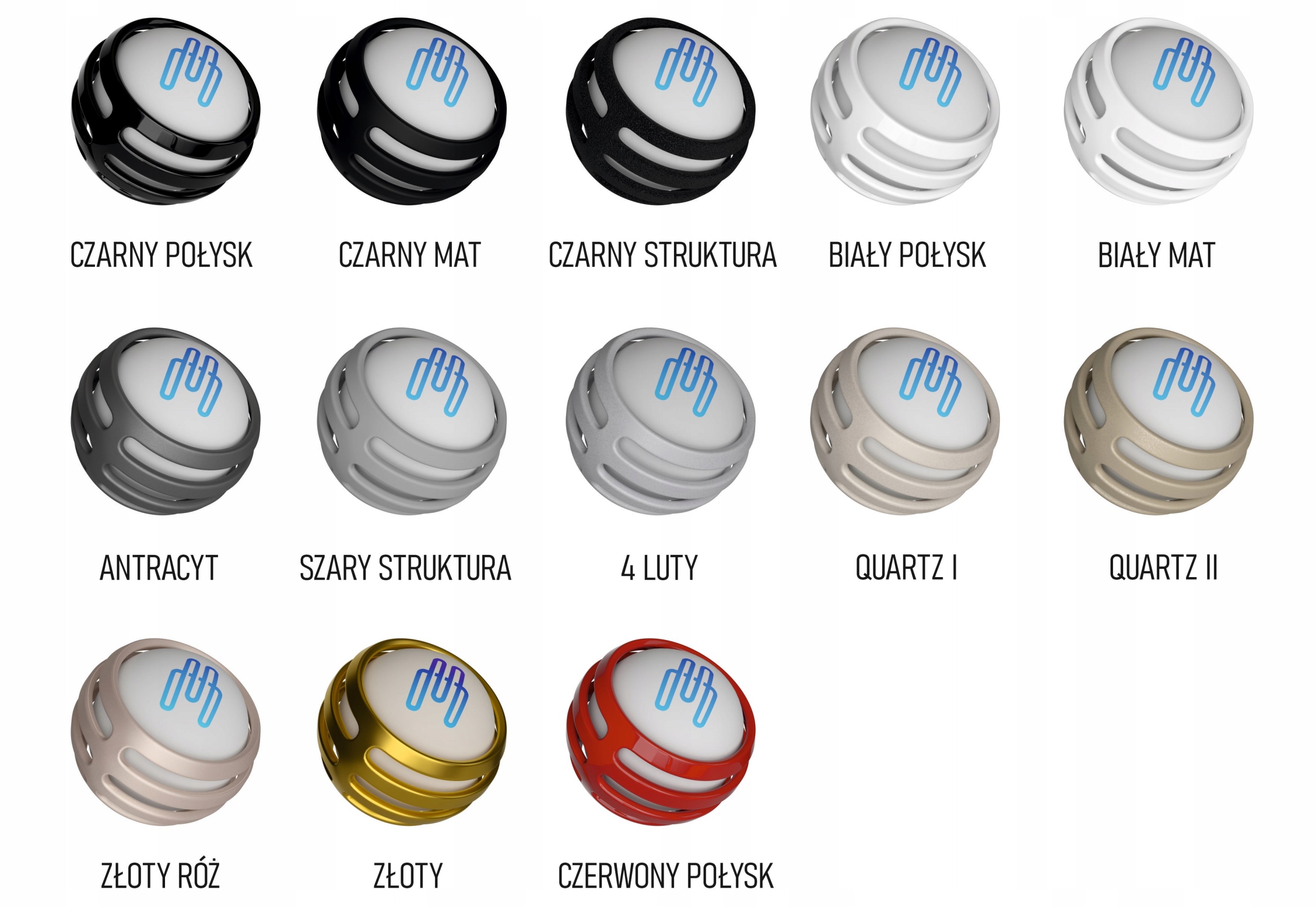

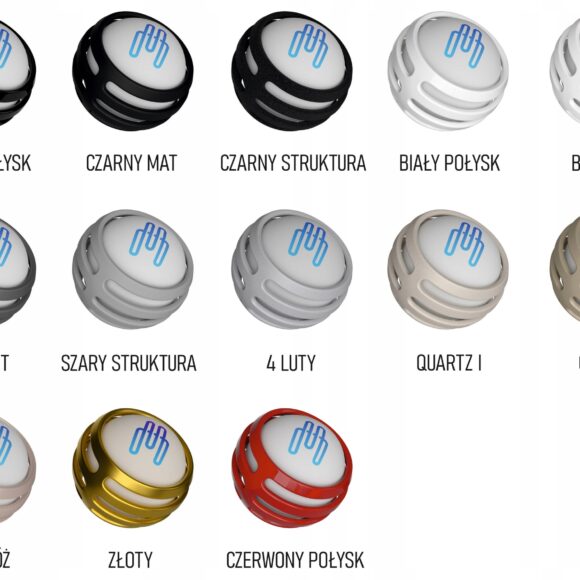

 ➡️COLOUR: White, black, chrome; selectable –

please specify the selected heater colour in a message to the seller)

HIGHEST QUALITY ⭐⭐⭐⭐⭐

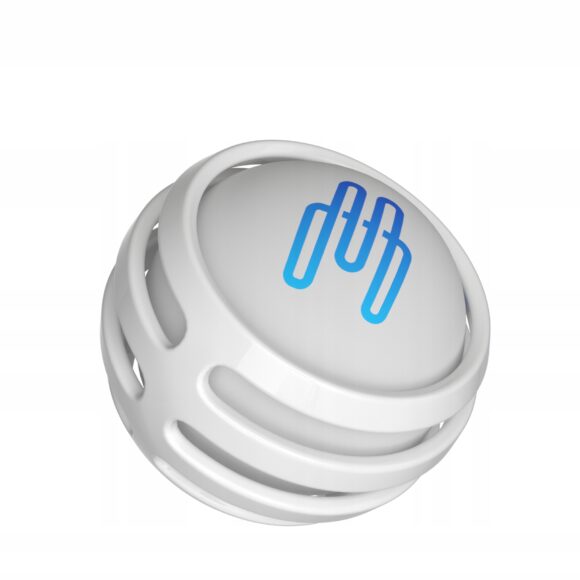

The heating element with an electronic thermostat is designed for heating water in bathroom radiators, convector heaters or other devices.

 A practical application of the heater is to assist in heating water during the heating season, e.g. radiators connected to the central heating system, or independent heating outside the season, drying towels, etc.

 The heater has a thermal switch to protect against overheating.

 Protection class IP 24

✅Device:

• is easy to install without the help of a professional (the seal ensures installation without tow or Teflon tape),
• is easy to use,
• provides a wide range of temperature control from 13°C to 65°C,
• provides precise temperature measurement thanks to the use of an electronic regulator,
• ensures the lowest energy consumption – thanks to the use of a temperature regulator,
• has a heating element with the highest durability,

✅Additional advantages include:

• off-season heating
  towel drying – warm and dry towels all year round
  smooth temperature control – using the heater outside the heating season ensures a comfortable warm bathroom all year round.
• exceptional comfort
  electronic thermostat – the temperature controller switches off the heater when the set temperature is reached
  environmentally friendly
  energy saving

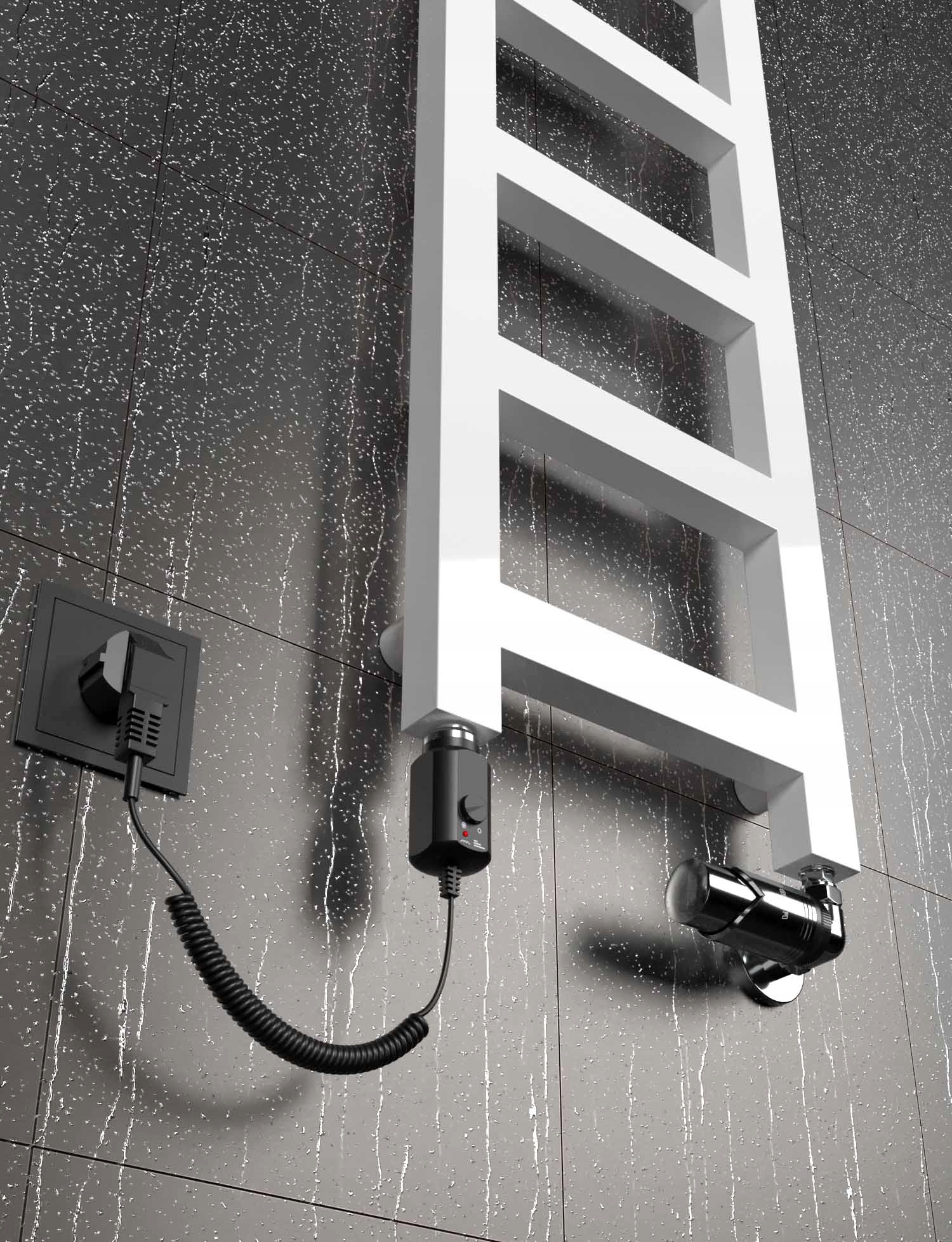

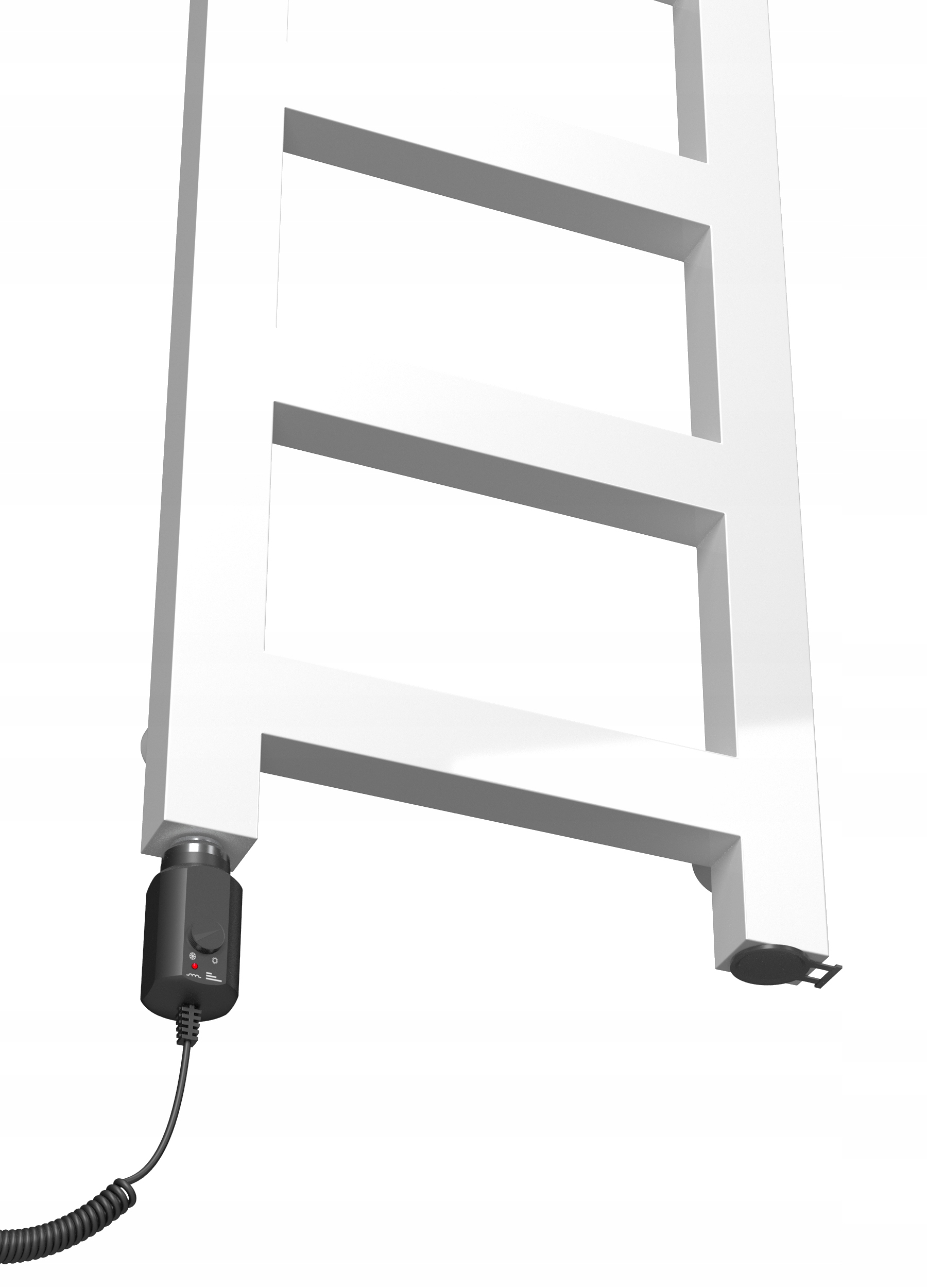

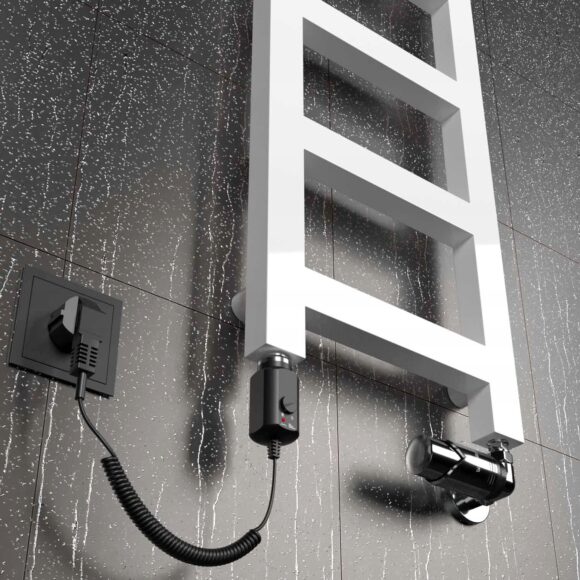

A functional and easy-to-use bathroom radiator with bottom connection and electric heater. The radiator is suitable for drying towels and clothes, and above all, it will perfectly heat your bathroom! The product is designed for connection to an electric heater, allowing it to be used outside the heating season.

CERTIFIED PRODUCT ⭐⭐⭐⭐⭐

The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.

 This means you can be sure that you are receiving a product of the highest quality.

 The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE mark (European Certificate).

 All radiators are manufactured in Poland.
