Shop Details

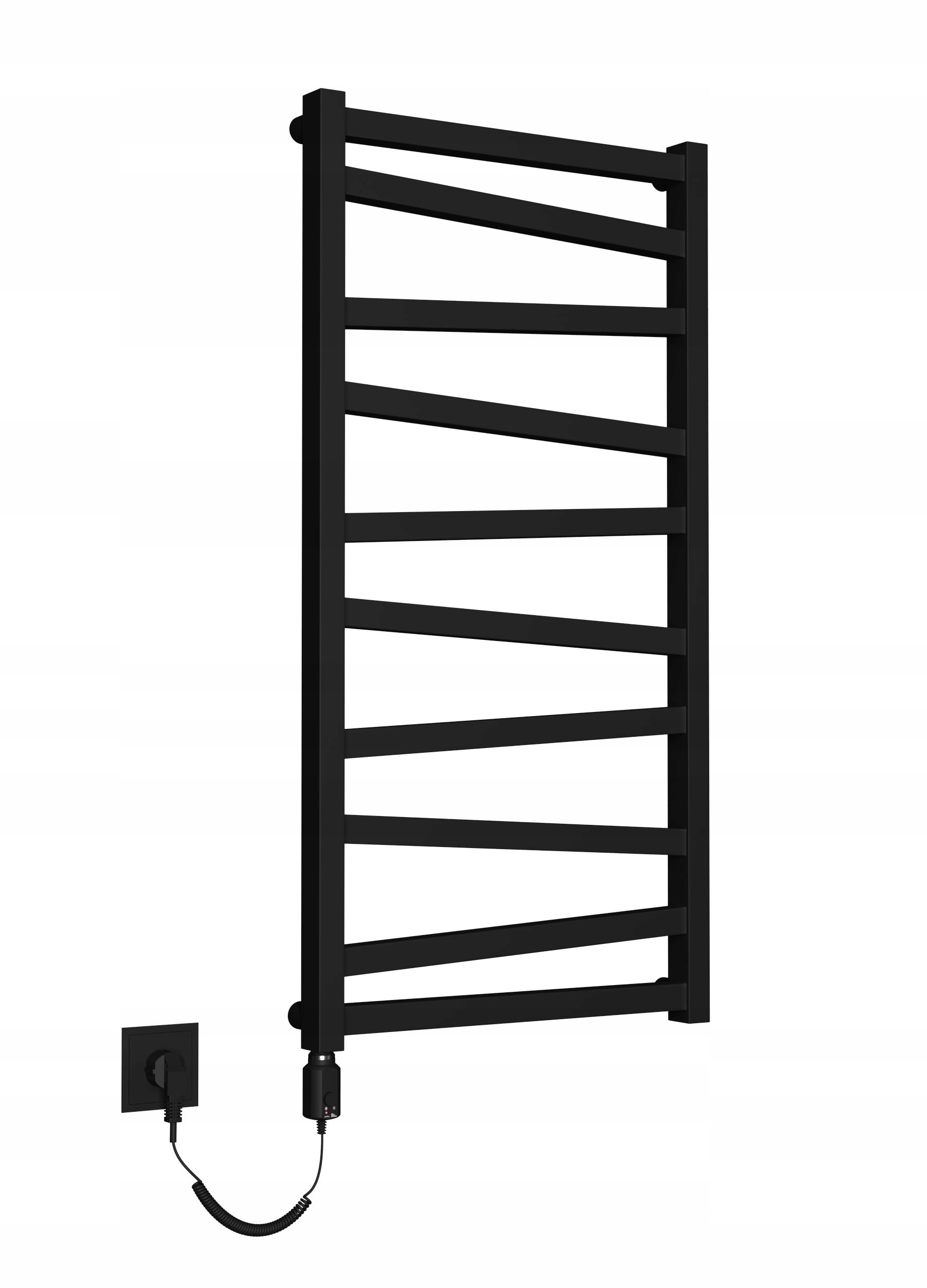

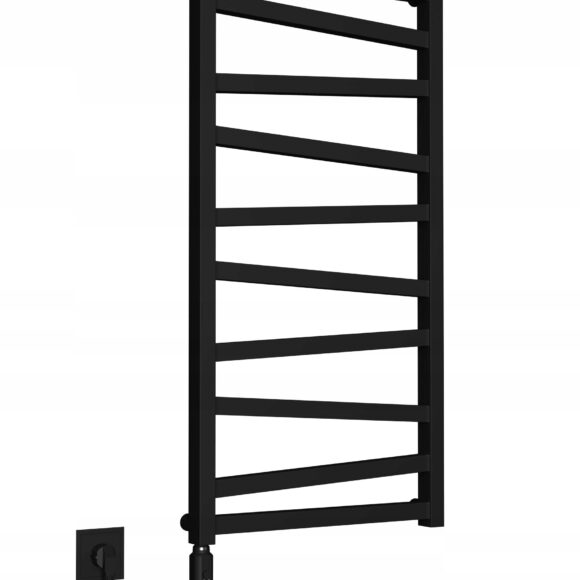

Model: ZYGZAK: 75/50

• Width: 500 mm (A)
• Height: 750 mm (H)
• Connection spacing: 470 mm (bottom)
• Heat output: 477 watts
• Colour: matt black
• Connection: bottom
• Thread: 1/2 inch
• Material: steel
• Type of coating: powder coating

The radiator can only be connected to an electric heater or connected simultaneously to the central heating system and the heater.

How to choose the power of a radiator?

The power of the radiator should be selected according to the size of the room.

 The above radiator with a power of 477W will heat a room with an area of 4.5m2.

 Thermal and pressure parameters of the radiator:

 temperature 75/60/20

working pressure 0.6 MPa

test pressure 0.90 MPa

Depending on the installation in your house/flat, you need to calculate the power of the radiator.

 75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

55/45/20 – for modern condensing boilers, gas stoves,

50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

90/70/20 – high temperature system for solid fuel boilers.

The specified heater power is indicated for the 75/65 parameter. For other parameters, the power should be calculated according to the following information: Add or subtract the following values from the heater power depending on your installation:

• 55/45/20 – 50%
• 50/40/20 – 60%
• 45/35/20 – 70%
• 90/70/20 + 20%

Included:

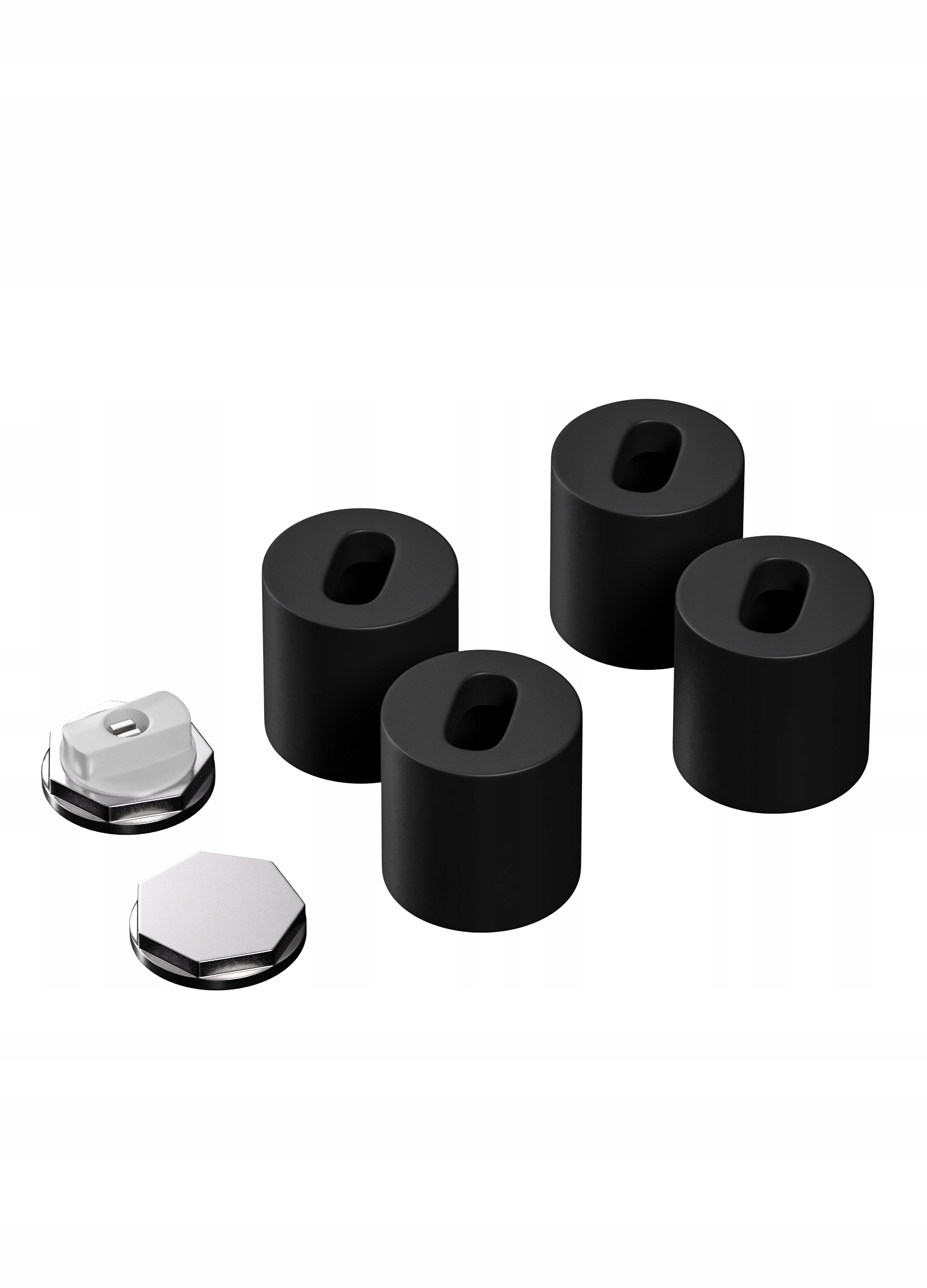

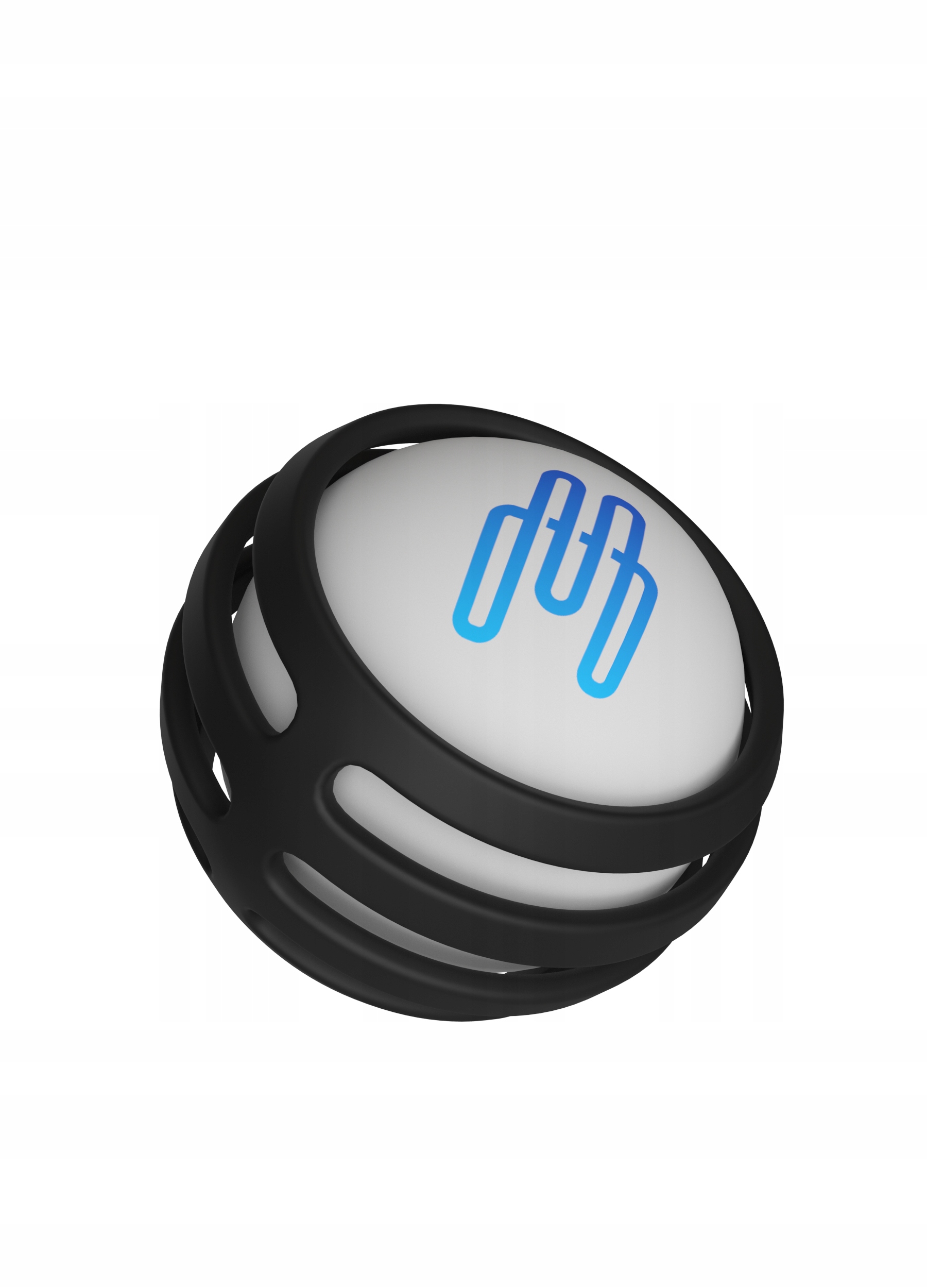

 modern vent

mounting brackets

plastic caps for safe transport

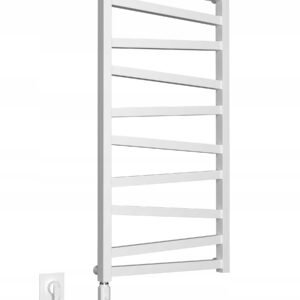

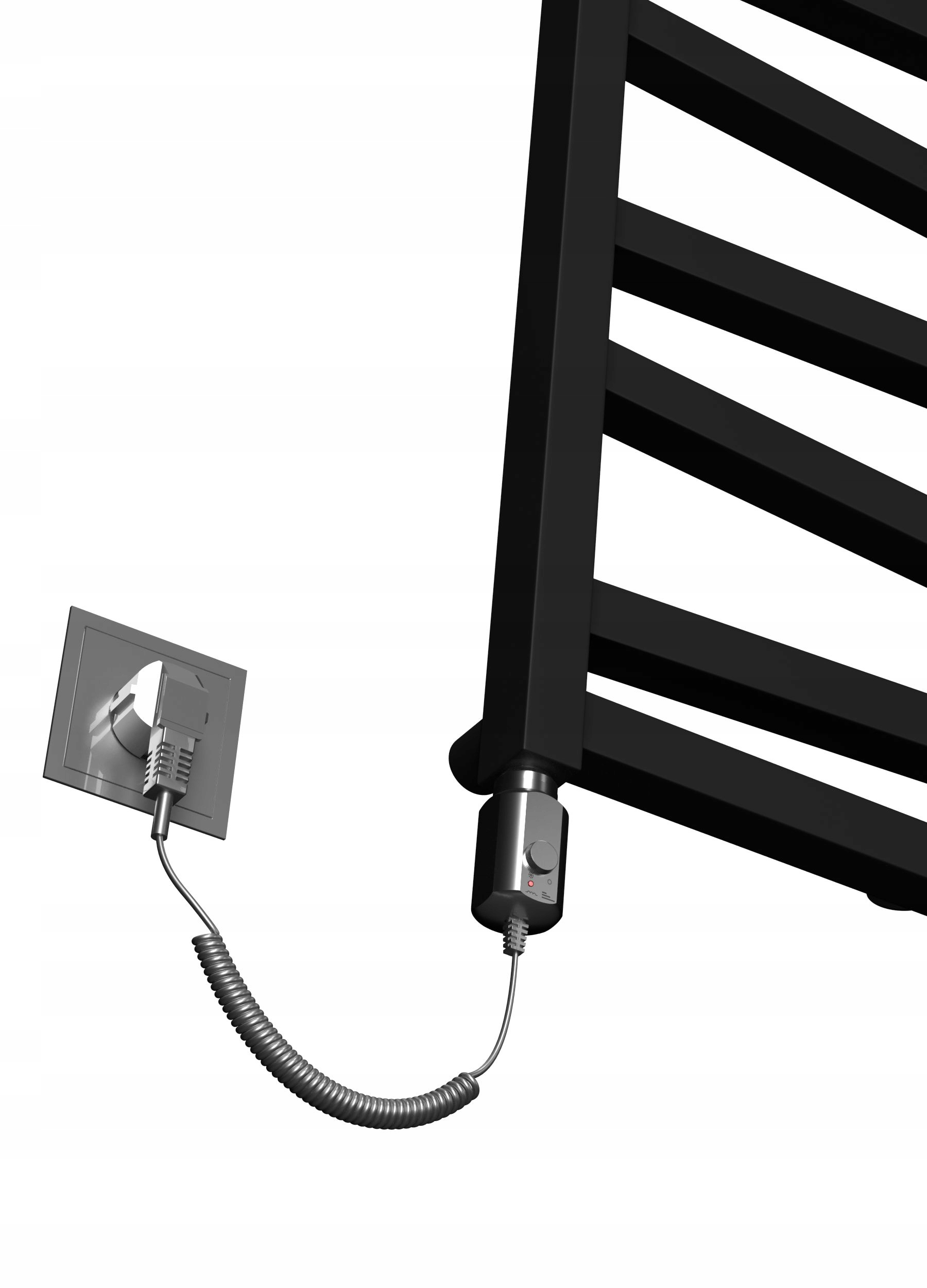

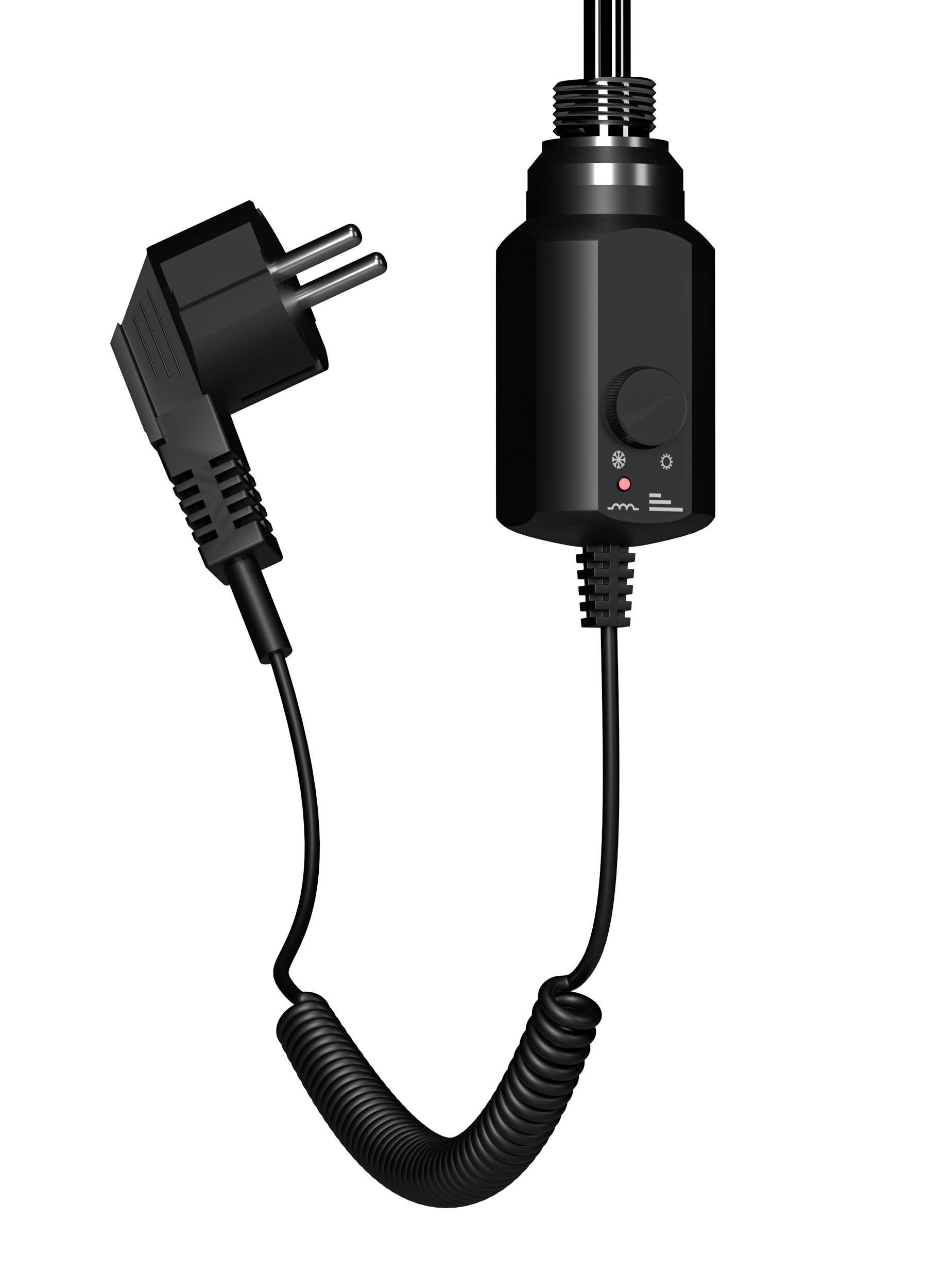

heater – 300W VOLUX – (colour options: white, black chrome) – if no colour is specified, we will send a black heater

CERTIFIED PRODUCT

The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.

 This means you can be sure that you are receiving a product of the highest quality.

 The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE mark (European Certificate).
