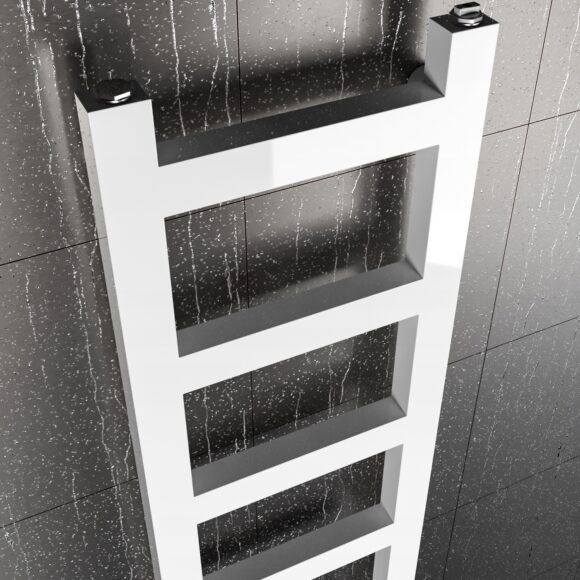

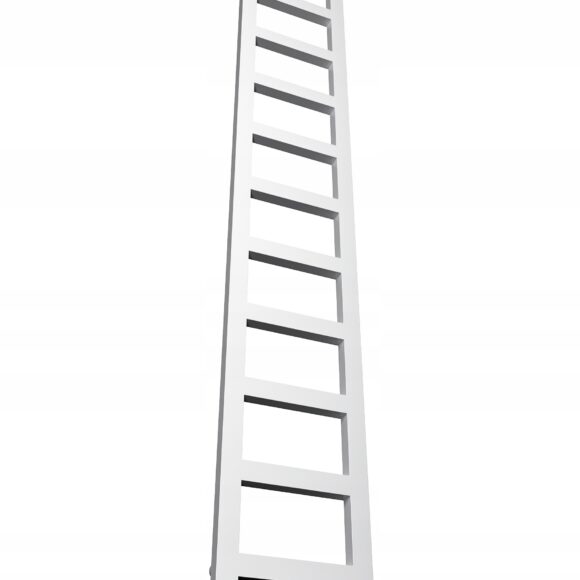

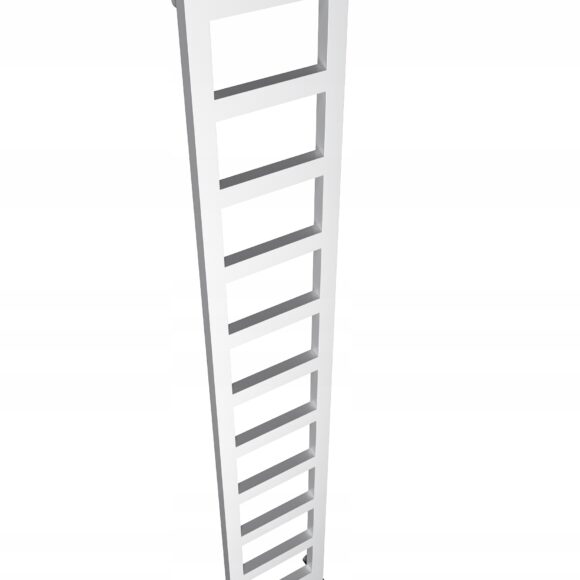

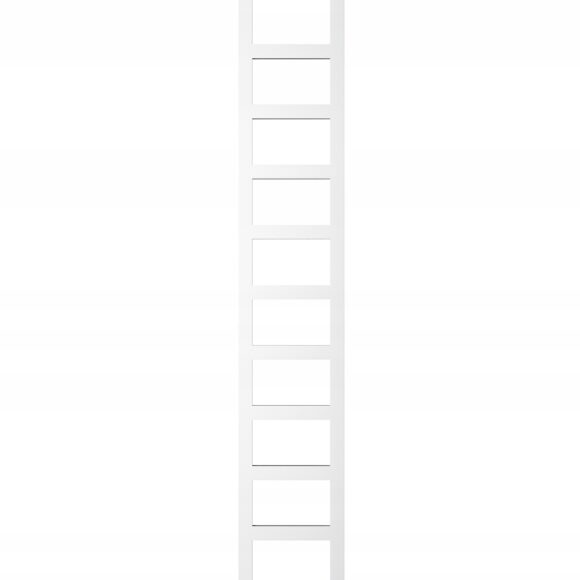

ELECTRIC BATHROOM RADIATOR WITH VOLUX ELECTRIC HEATER

Model: LUCY: 143/25

• ➡️Width: 250 mm (A)

  ➡️Height: 1430 mm (H)

  ➡️Connection spacing: 220 mm (bottom)

  ➡️Heat output: 590 watts

  ➡️Colour: gloss white

  ➡️Connection: bottom

  ➡️Thread: 1/2 inch

  ➡️Material: steel

  ➡️Type of coating: powder coating

How to choose the power of a radiator?

The power of the heater should be selected according to the size of the room.

The above 590W radiator will heat a room with an area of 5.5 – 6 m².

Thermal and pressure parameters of the radiator:

☑️temperature 75/60/20

☑️working pressure 0.6 MPa

☑️test pressure 0.90 MPa

Depending on the installation in your house/flat, you need to calculate the power of the radiator.

☑️75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

☑️55/45/20 – for modern condensing boilers, gas furnaces,

☑️50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

☑️90/70/20 – high temperature system for solid fuel boilers.

The specified radiator output is indicated for the 75/65 parameter; for other parameters, the output should be calculated according to the following information:

Add or subtract the following values from the radiator output depending on your installation:

☑️55/45/20 – 50%

☑️50/40/20 – 60%

☑️45/35/20 – 70%

☑️90/70/20 + 20%

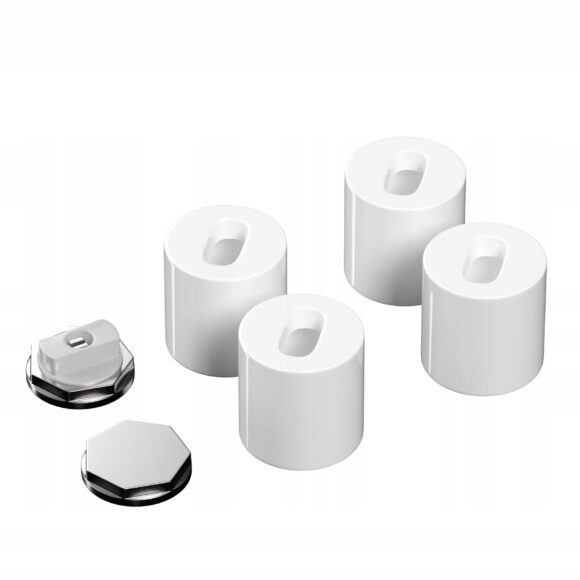

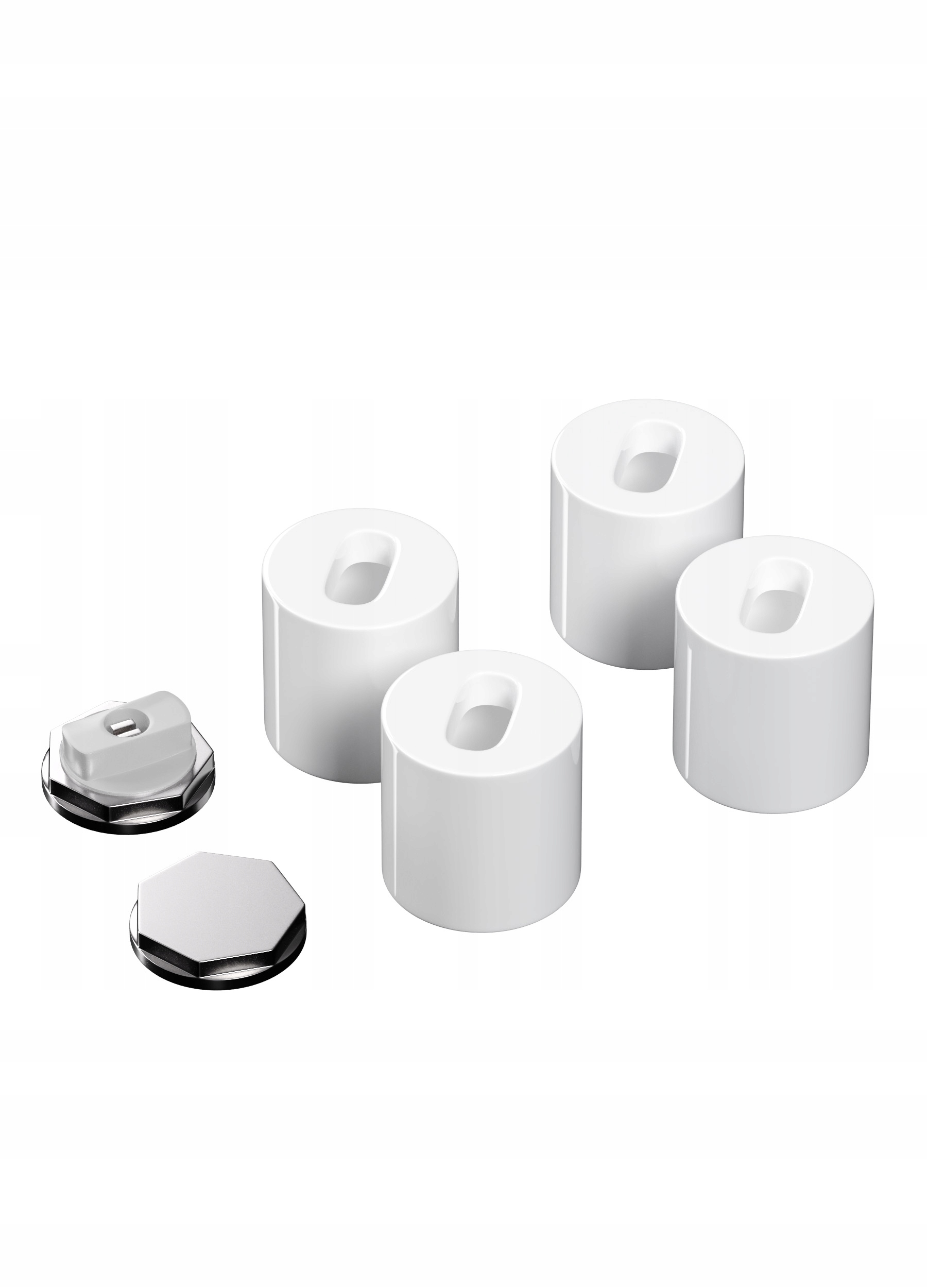

Included with the radiator:

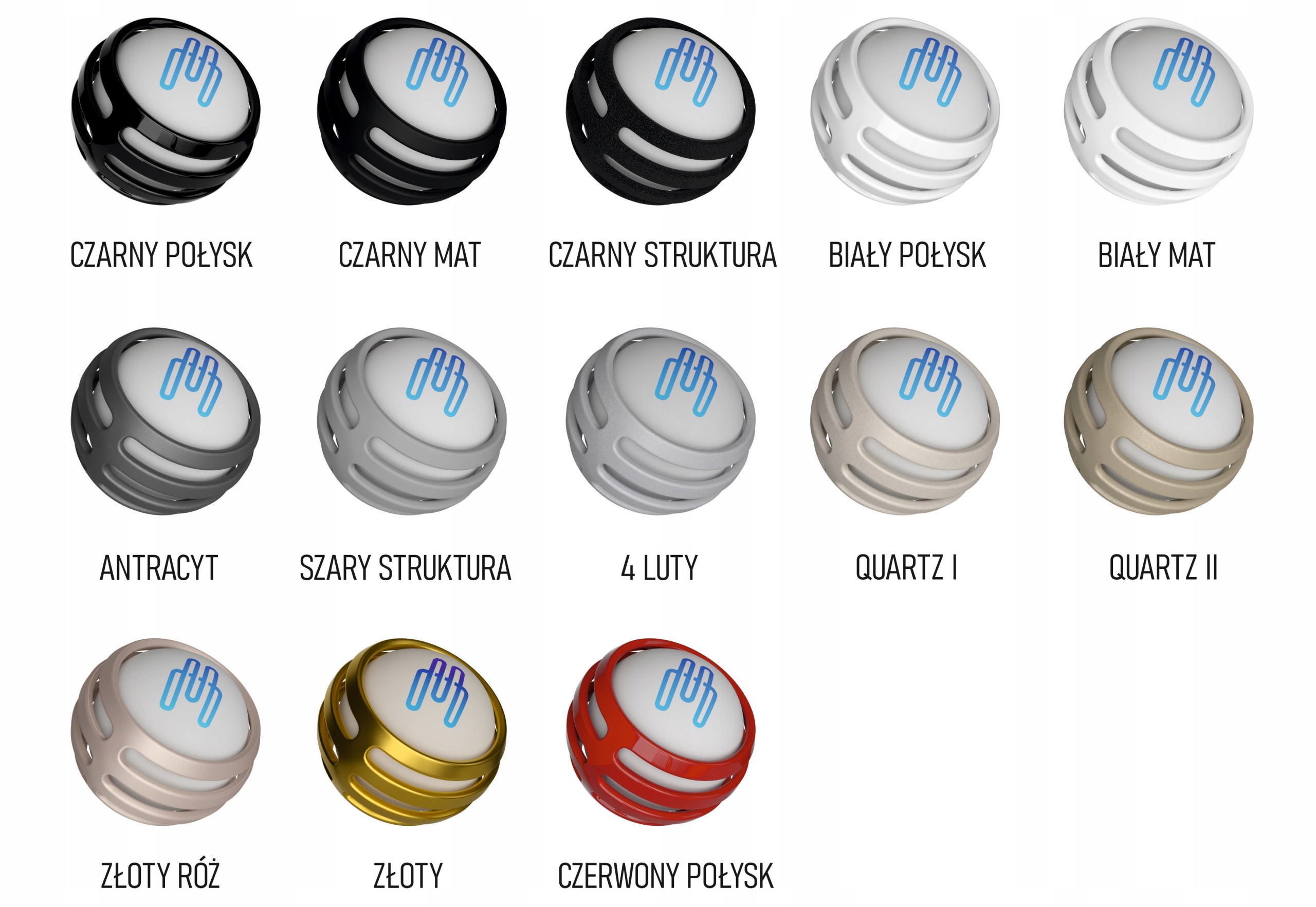

✅modern air vent

✅mounting brackets

✅plastic caps for safe transport

✅proof of purchase (e-invoice)

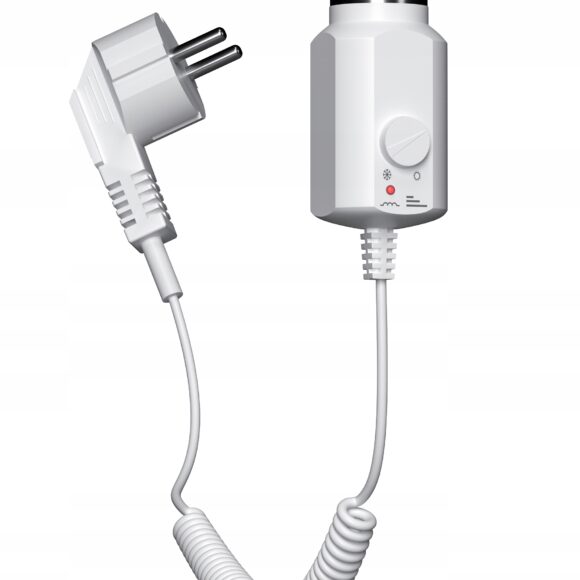

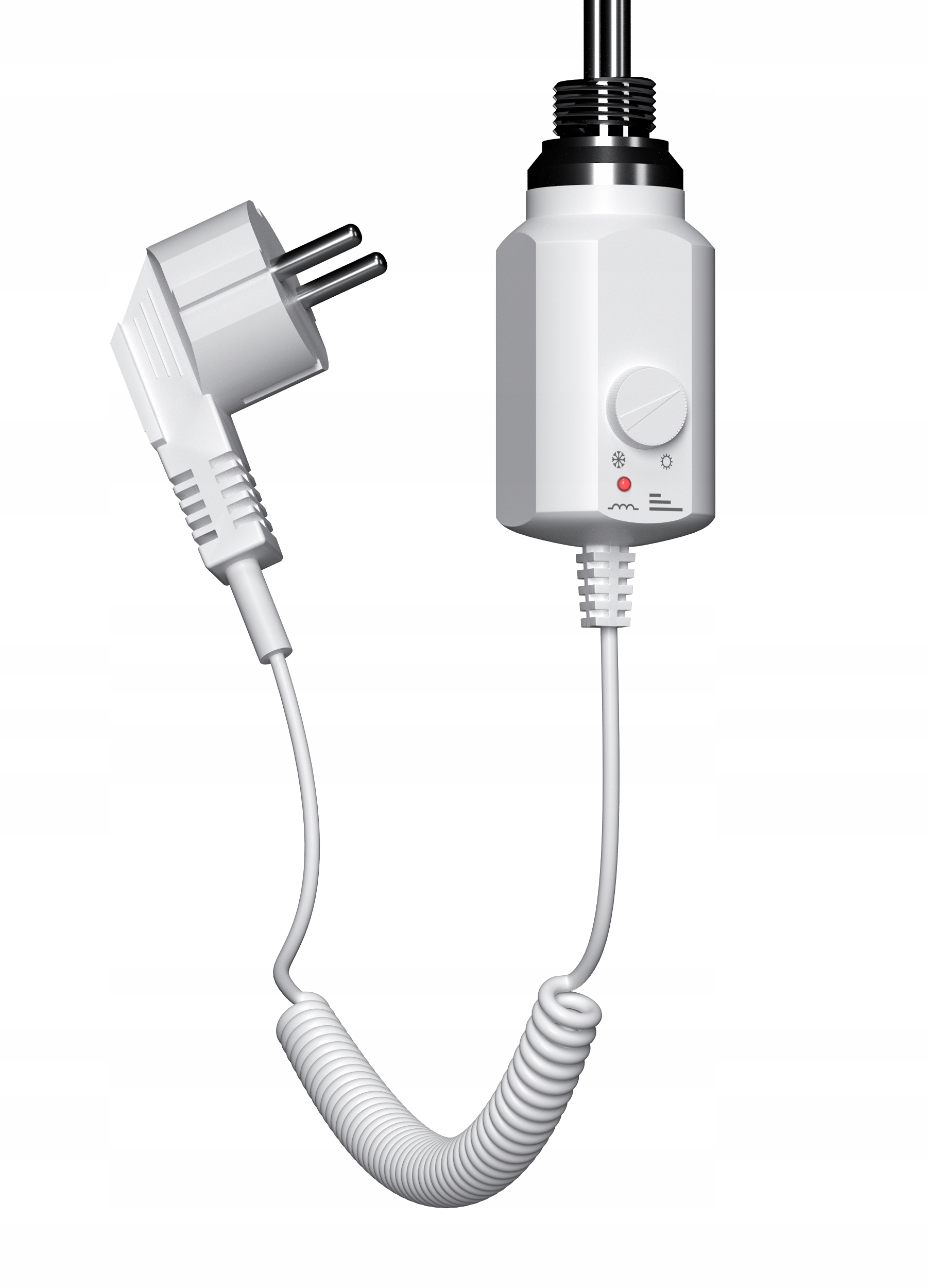

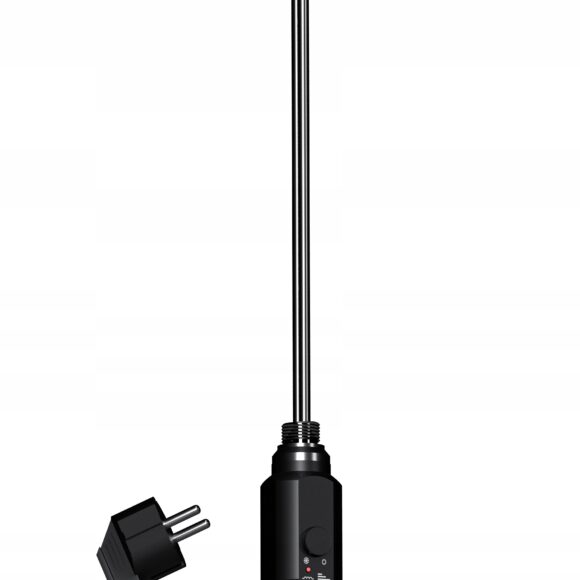

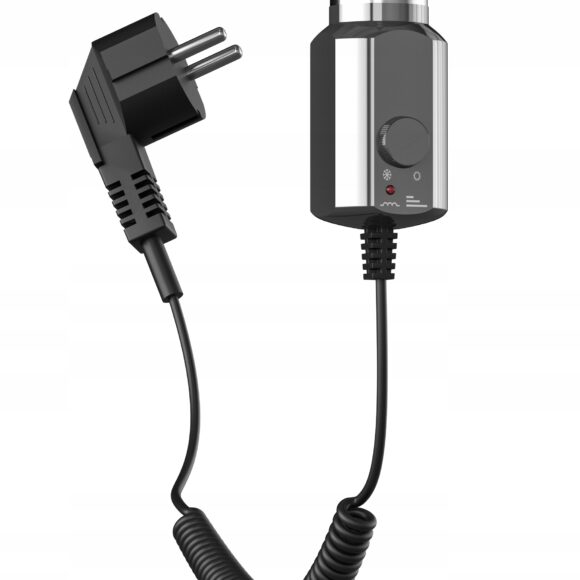

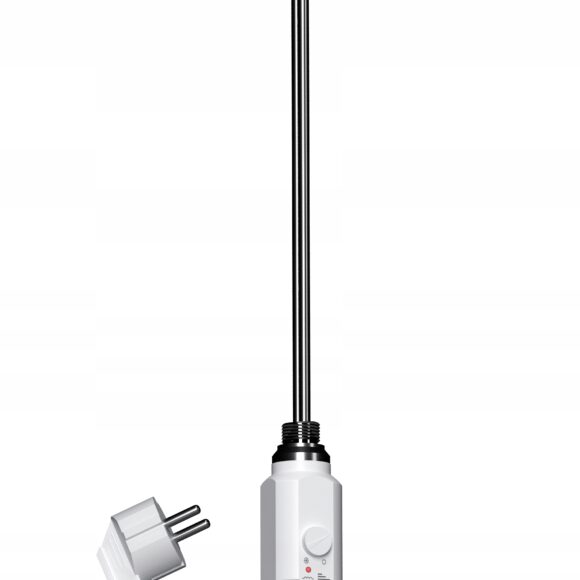

+ 300W ELECTRIC HEATER

FREE ELECTRIC HEATER!

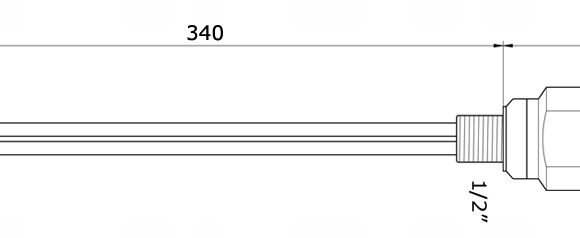

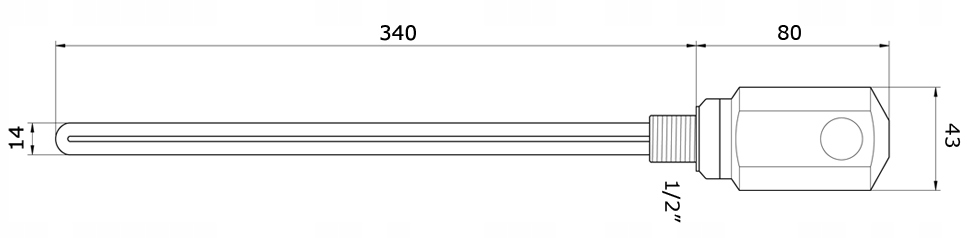

TECHNICAL DATA:

➡️POWER: 300 W

➡️THREAD: 1/2”

➡️VOLTAGE: 230V 50Hz

➡️RATED CURRENT: 1.3 A

➡️HEATING ELEMENT LENGTH: 270 (mm)

➡️TEMPERATURE CONTROL: 10°C – 60°C

➡️CONNECTION CABLE: 3 x 0.75 mm2

➡️RECOMMENDED FOR HEATERS: 300W – 600W

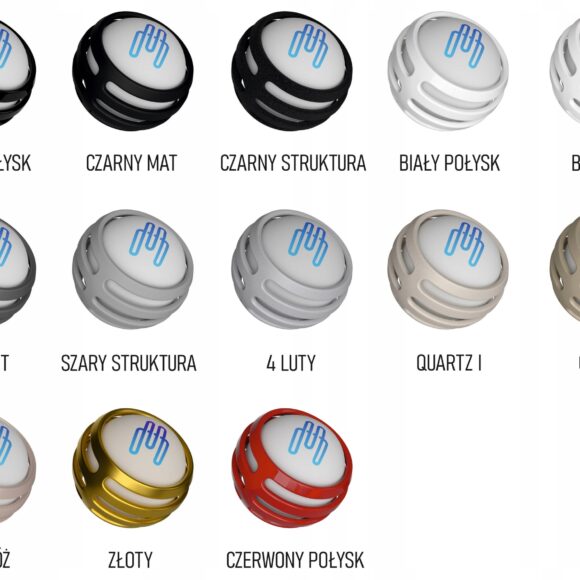

➡️COLOUR: White, black, chrome; selectable

(please specify the selected heater colour in a message to the seller)

HIGHEST QUALITY ⭐⭐⭐⭐⭐

The heating element with an electronic thermostat is designed for heating water in bathroom radiators, convector heaters or other devices.

A practical application of the heater is to assist in heating water during the heating season, e.g. radiators connected to the central heating system, or independent heating outside the season, drying towels, etc.

The heater has a thermal switch to protect against overheating.

Protection class IP 24

✅Device:

• is easy to install without the help of a professional (the seal ensures installation without tow or Teflon tape),

  is easy to use,

  provides a wide range of temperature control from 13°C to 65°C,

  provides precise temperature measurement thanks to the use of an electronic regulator,

  ensures the lowest energy consumption – thanks to the use of a temperature regulator,

  has a heating element with the highest durability,

✅Additional advantages include:

• off-season heating

  towel drying – warm and dry towels all year round

  smooth temperature control – using the heater outside the heating season ensures a comfortable warm bathroom all year round.

  exceptional comfort

  electronic thermostat – the temperature controller switches off the heater when the set temperature is reached

  environmentally friendly

  energy saving

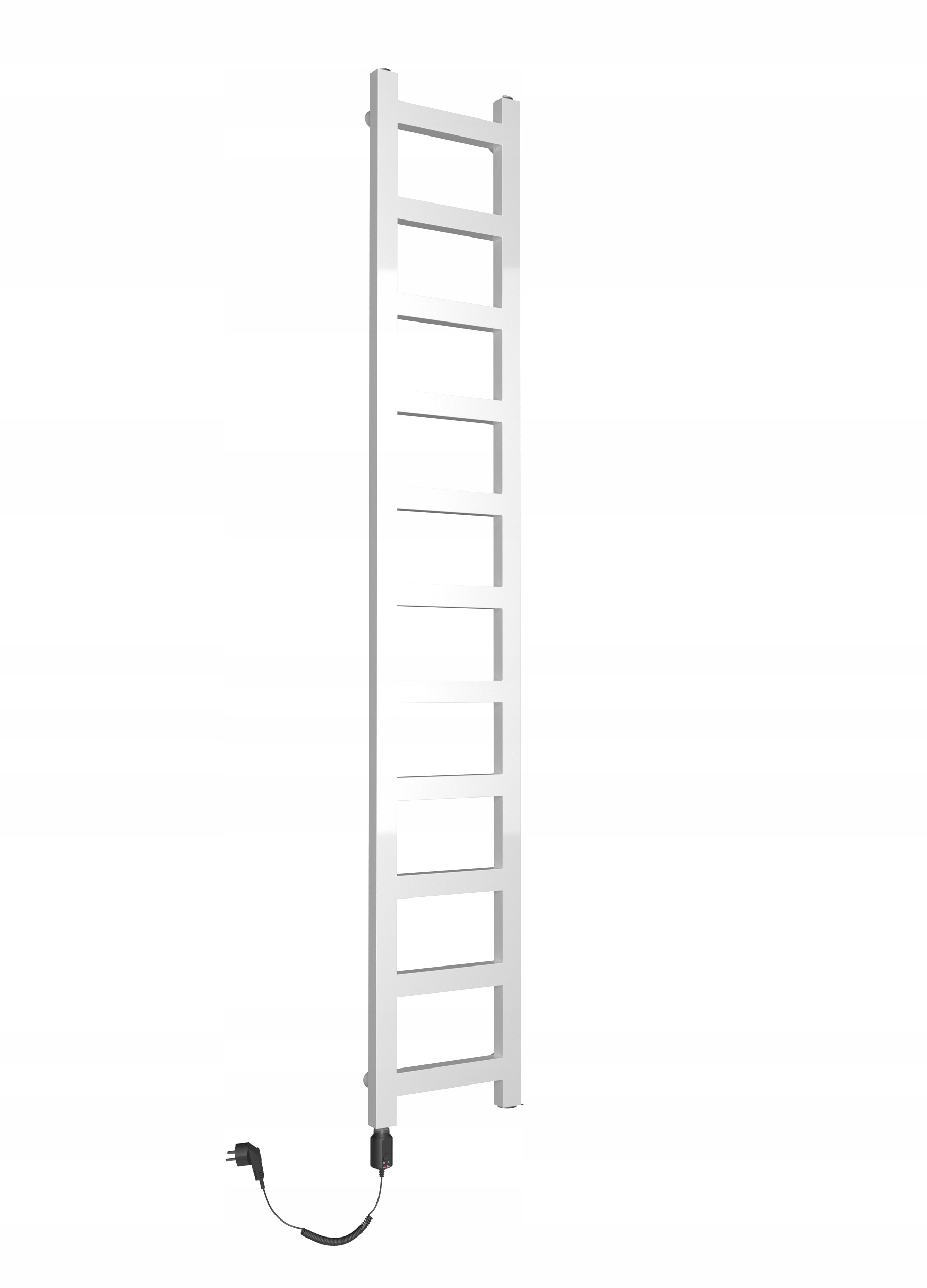

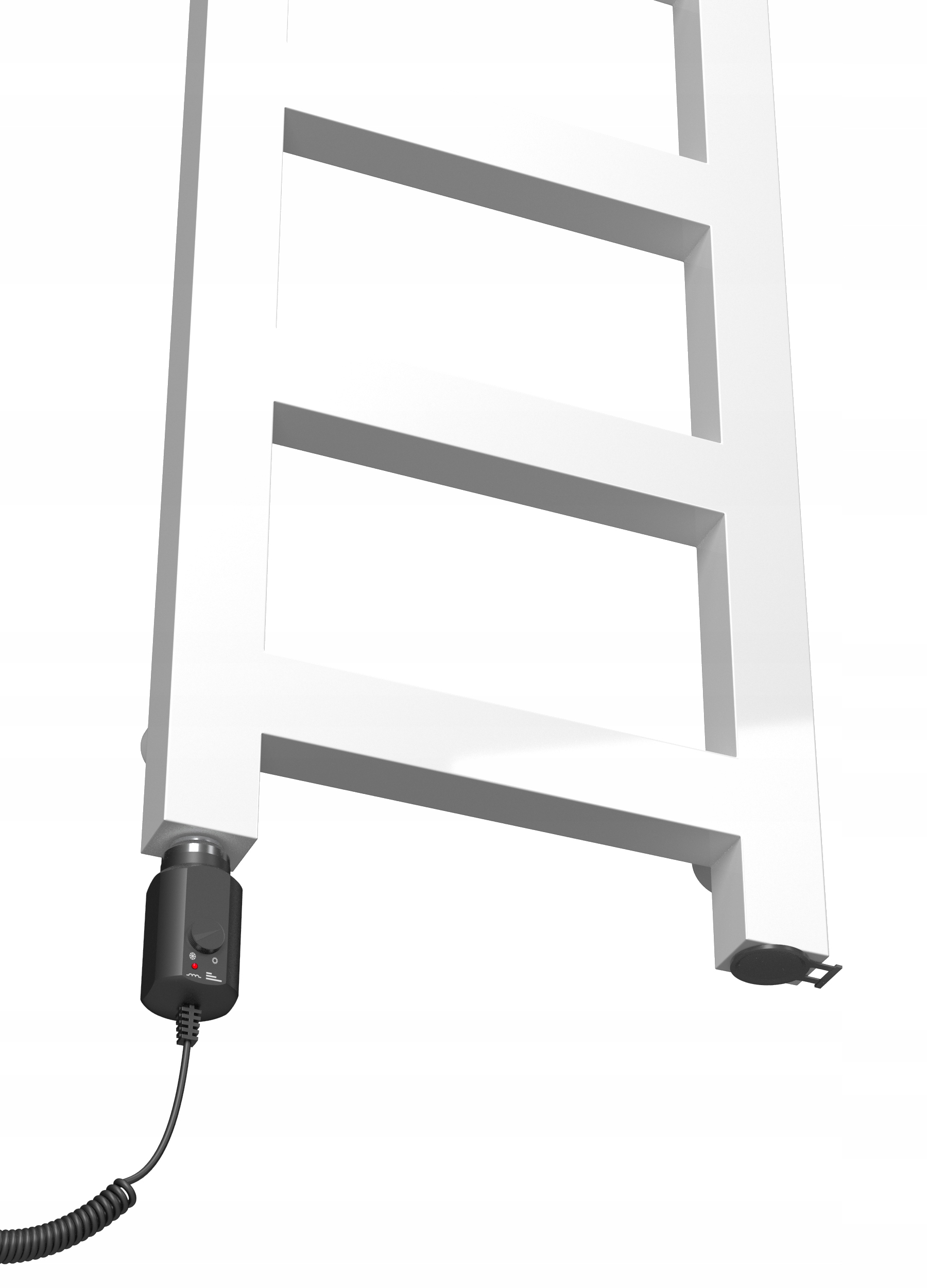

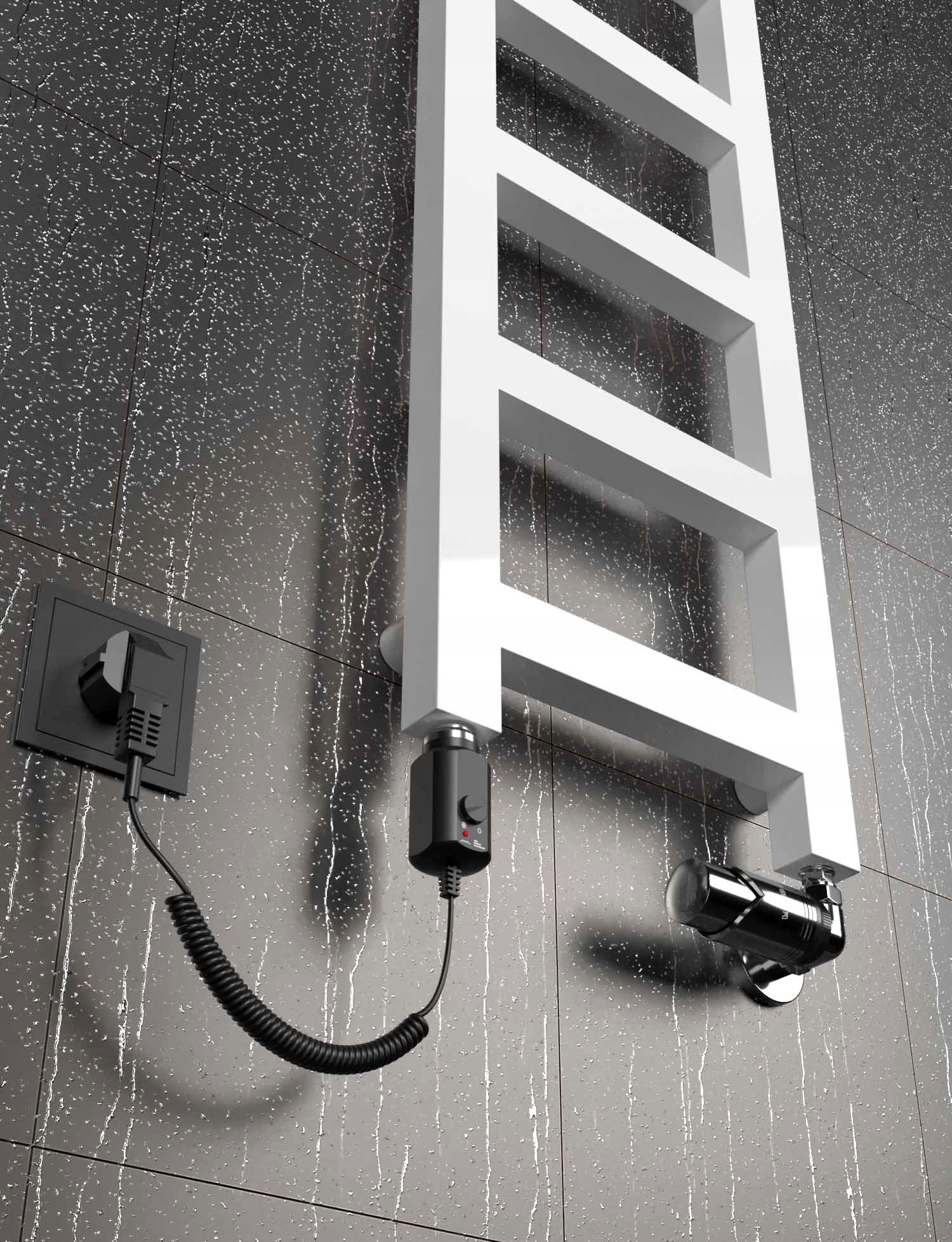

A functional and easy-to-use bathroom radiator with a bottom connection and an electric heating element. This radiator is suitable for drying towels and clothes, and above all, it will perfectly warm your bathroom! The product is compatible with an electric heating element, allowing for use outside the heating season.

CERTIFIED PRODUCT ⭐⭐⭐⭐⭐

The bathroom radiators we offer are made of the highest quality materials with exceptional care. We place primary emphasis on the quality, durability, and strength of the materials used. Furthermore, each of our products undergoes rigorous testing before reaching the customer.

You can be sure that you are receiving a top-quality product.

Our radiators are tested to ensure they fully comply with European Standards PN-EN 422 and meet the requirements of the CE trademark (European Certificate).

All radiators are manufactured in Poland.
