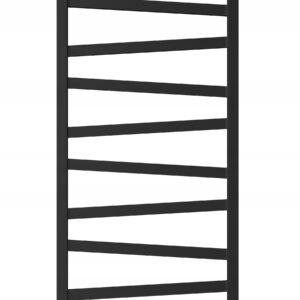

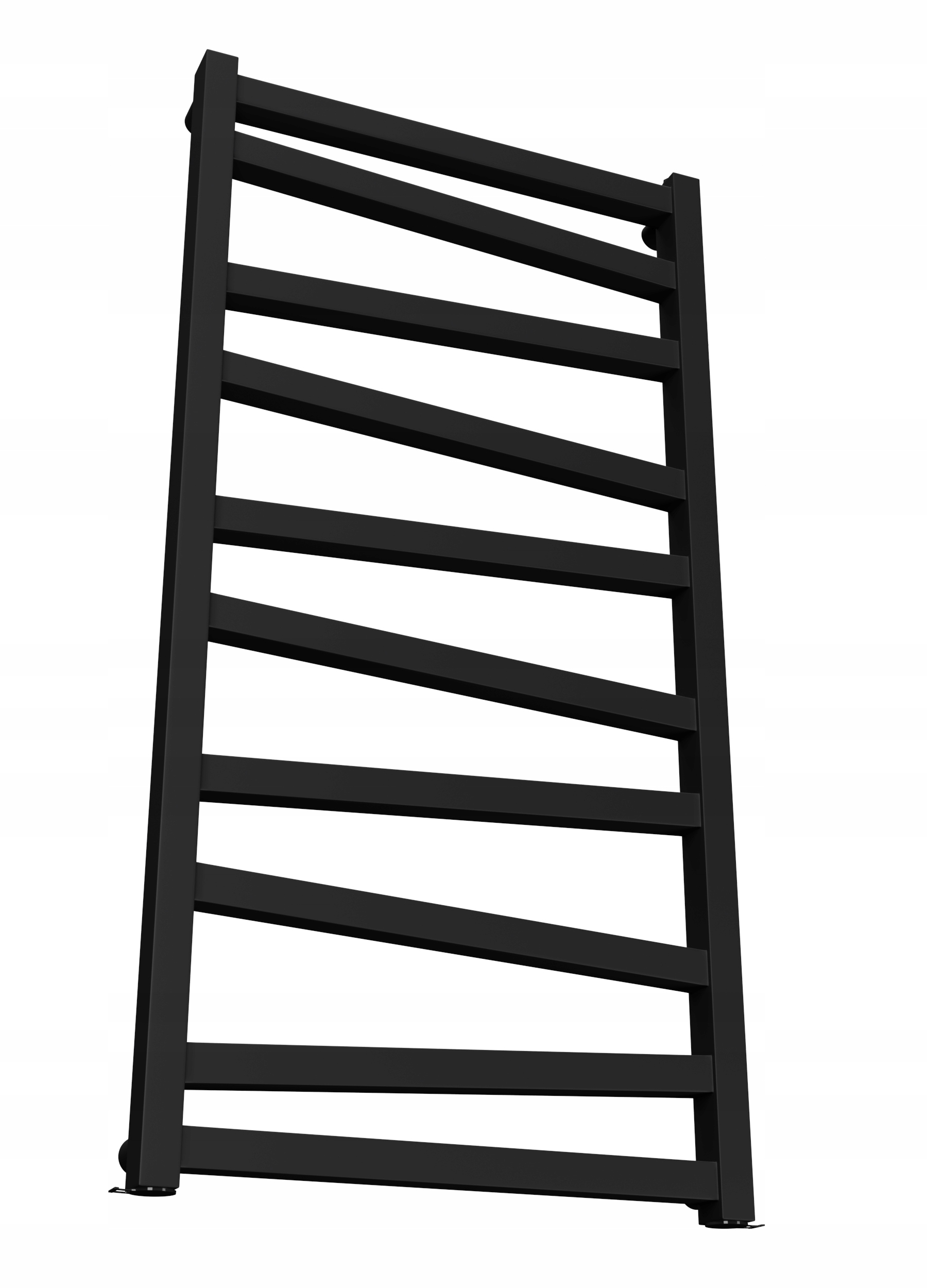

Designer towel warmer – ZYGZAK-MIDDLE vertical radiator

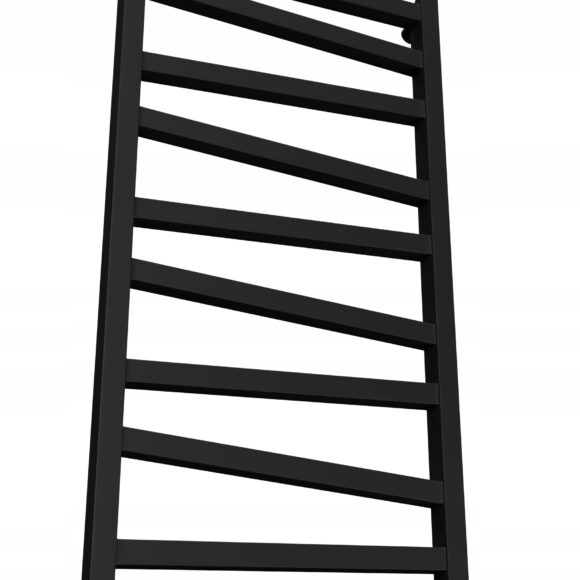

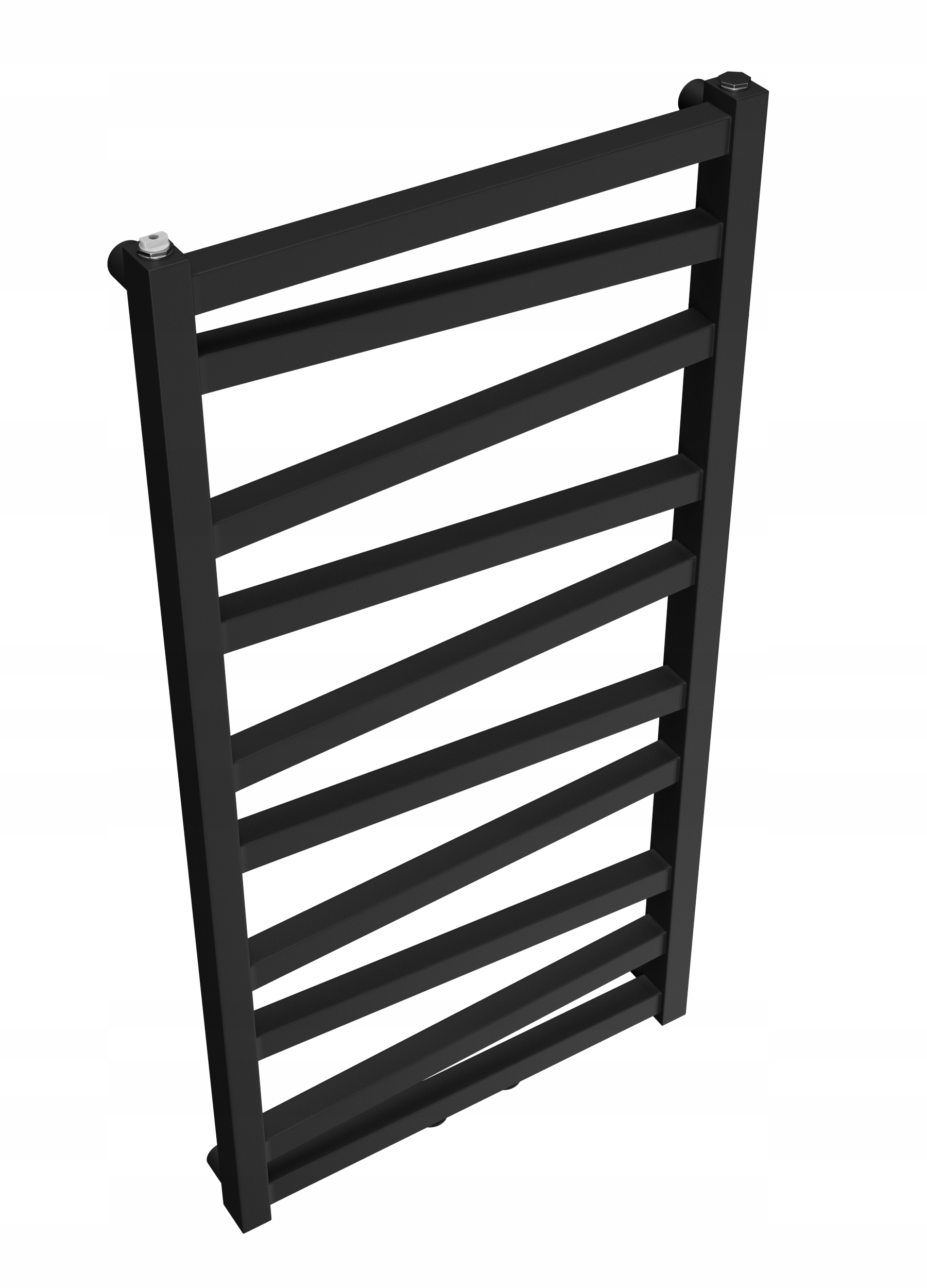

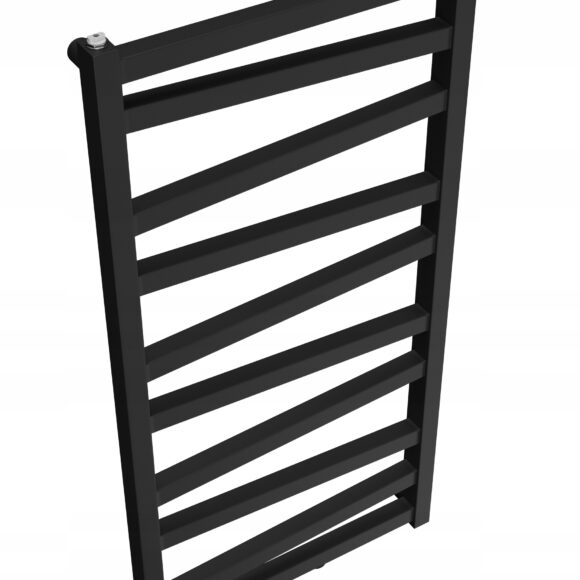

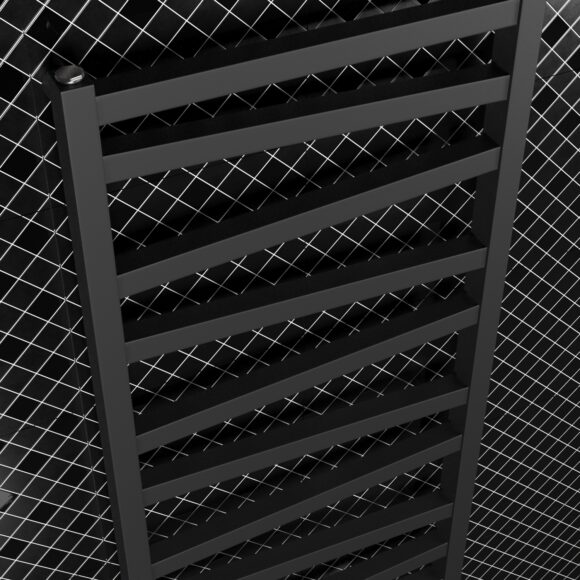

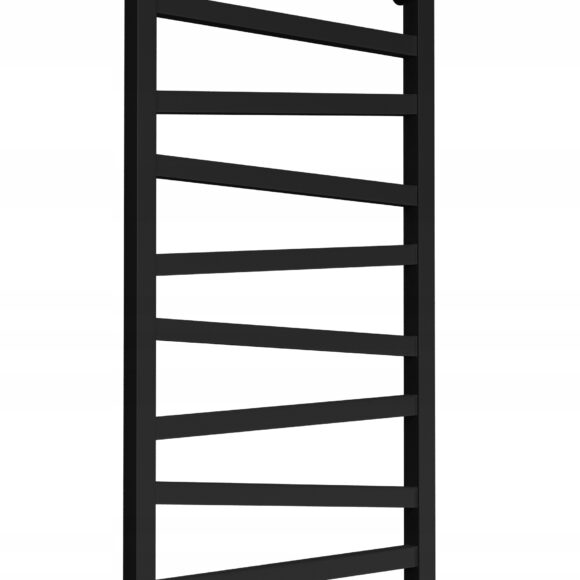

DECORATIVE RADIATOR ZYGZAK-MIDDLE

Model: ZYGZAK-MIDDLE: 97/50

• Width: 500 mm (A)

  Height: 970 mm (H)

  Connection spacing: 50 mm (bottom centre)

  Heat output: 556 watts

  Colour: matt black

  Connection: bottom

  Thread: 1/2 inch

  Material: steel

  Type of coating: powder coating

Thermal and pressure parameters:

temperature 75/65/20

working pressure 0.6 MPa

test pressure 0.90 MPa

How to choose the power of a radiator?

The power of the heater should be selected according to the size of the room.

The above 556W radiator will heat a room with an area of 5.5 – 6 m².

Thermal and pressure parameters of the radiator:

temperature 75/65/20

working pressure 0.6 MPa

test pressure 0.90 MPa

Depending on the installation in your house/flat, you need to calculate the power of the radiator.

75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

55/45/20 – for modern condensing boilers, gas stoves,

50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

90/70/20 – high temperature system for solid fuel boilers.

The specified radiator power is indicated for the 75/65 parameter; for other parameters, the power should be calculated according to the following information:

Add or subtract the following values from the radiator power depending on your installation:

• 55/45/20 – 50%
• 50/40/20 – 60%
• 45/35/20 – 70%
• 90/70/20 + 25%

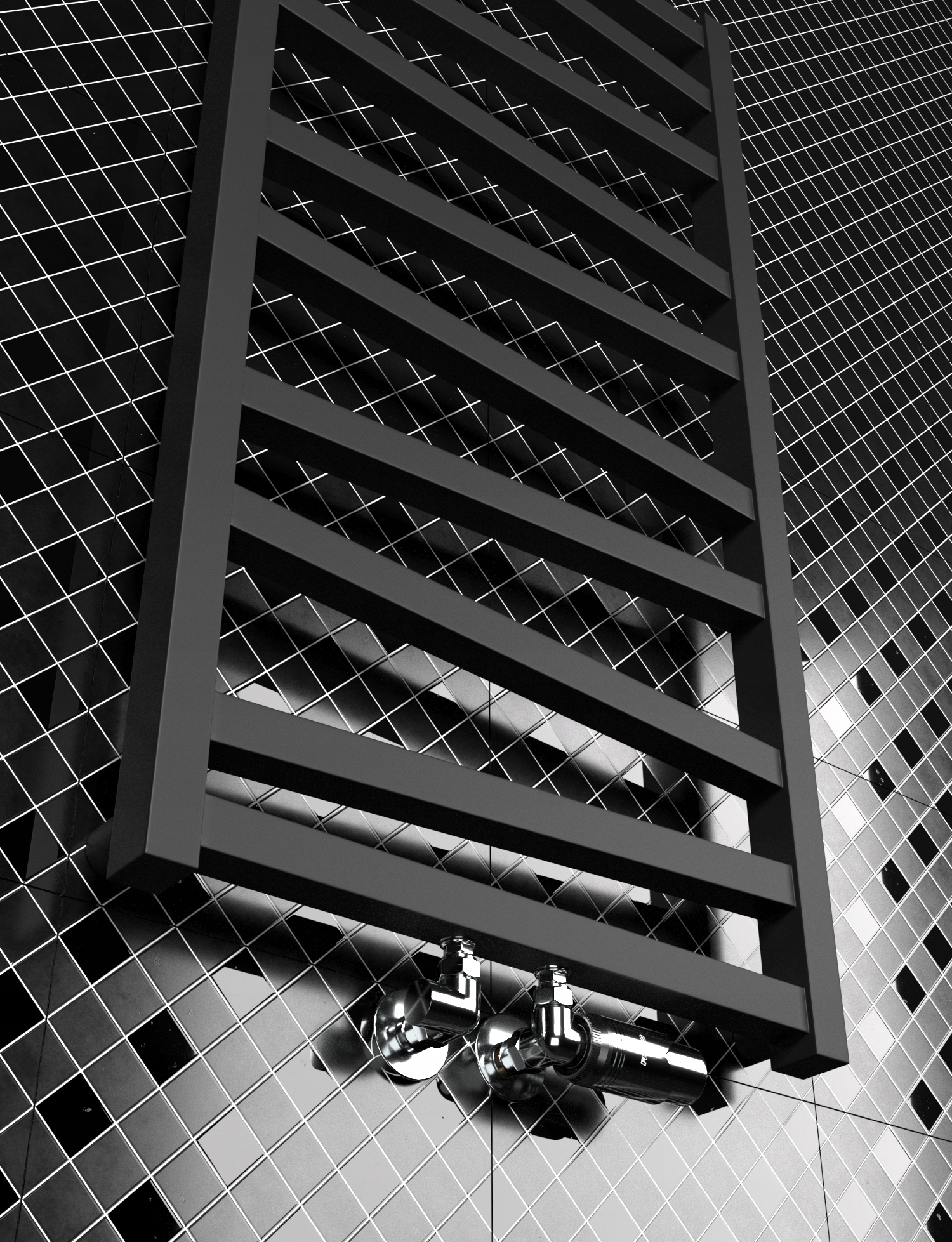

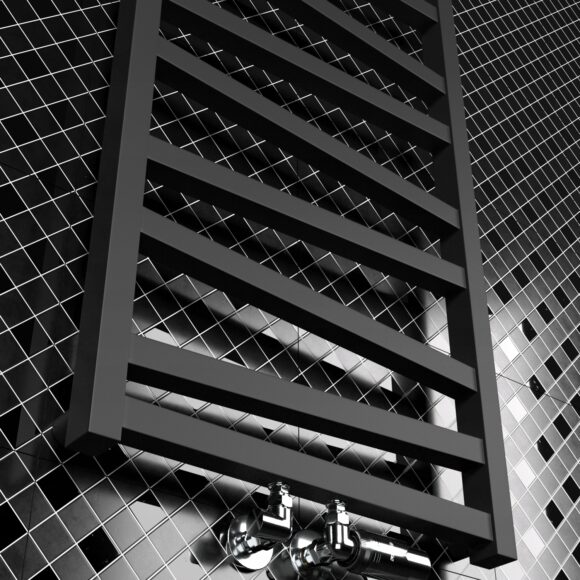

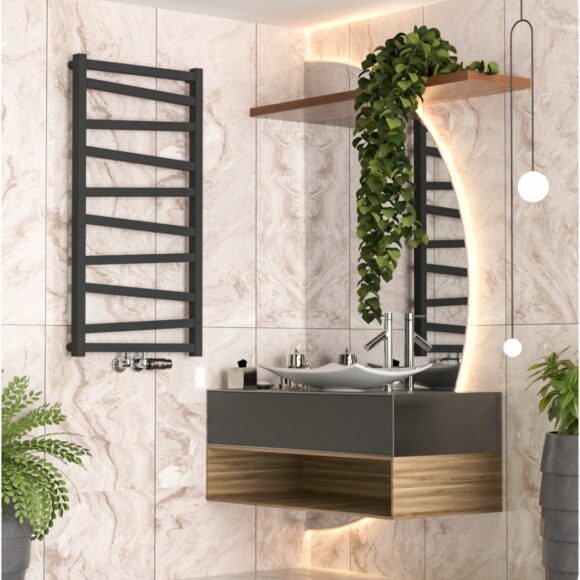

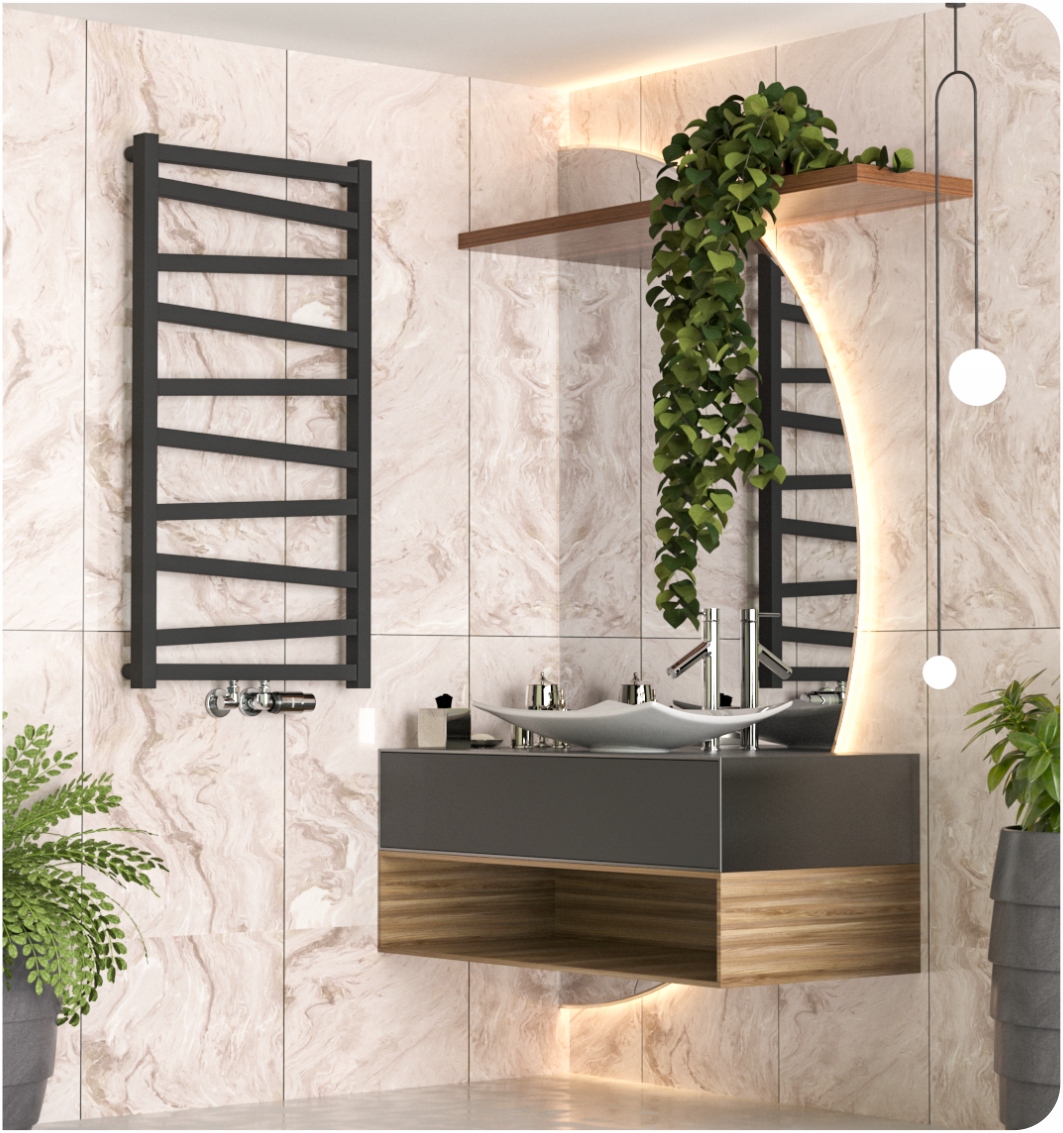

A functional and easy-to-use bathroom radiator with bottom connection. The radiator is suitable for drying towels and clothes, and above all, it will perfectly heat your bathroom! The product is designed for connection to an electric heater, allowing it to be used outside the heating season.

The radiator can be connected to central heating and to a heater, or individually, i.e. to a single heat source.

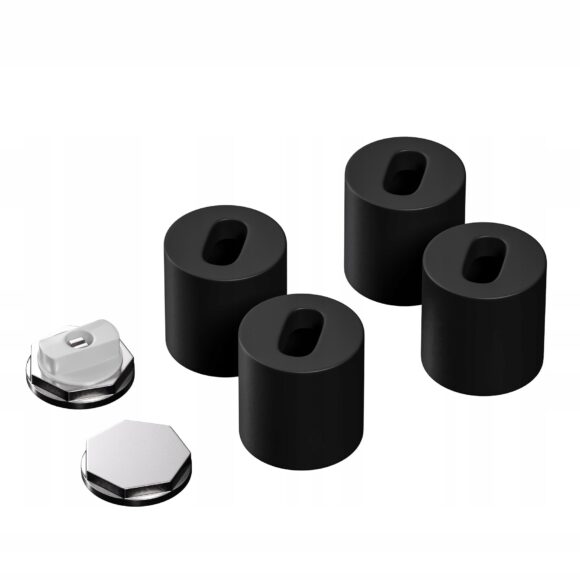

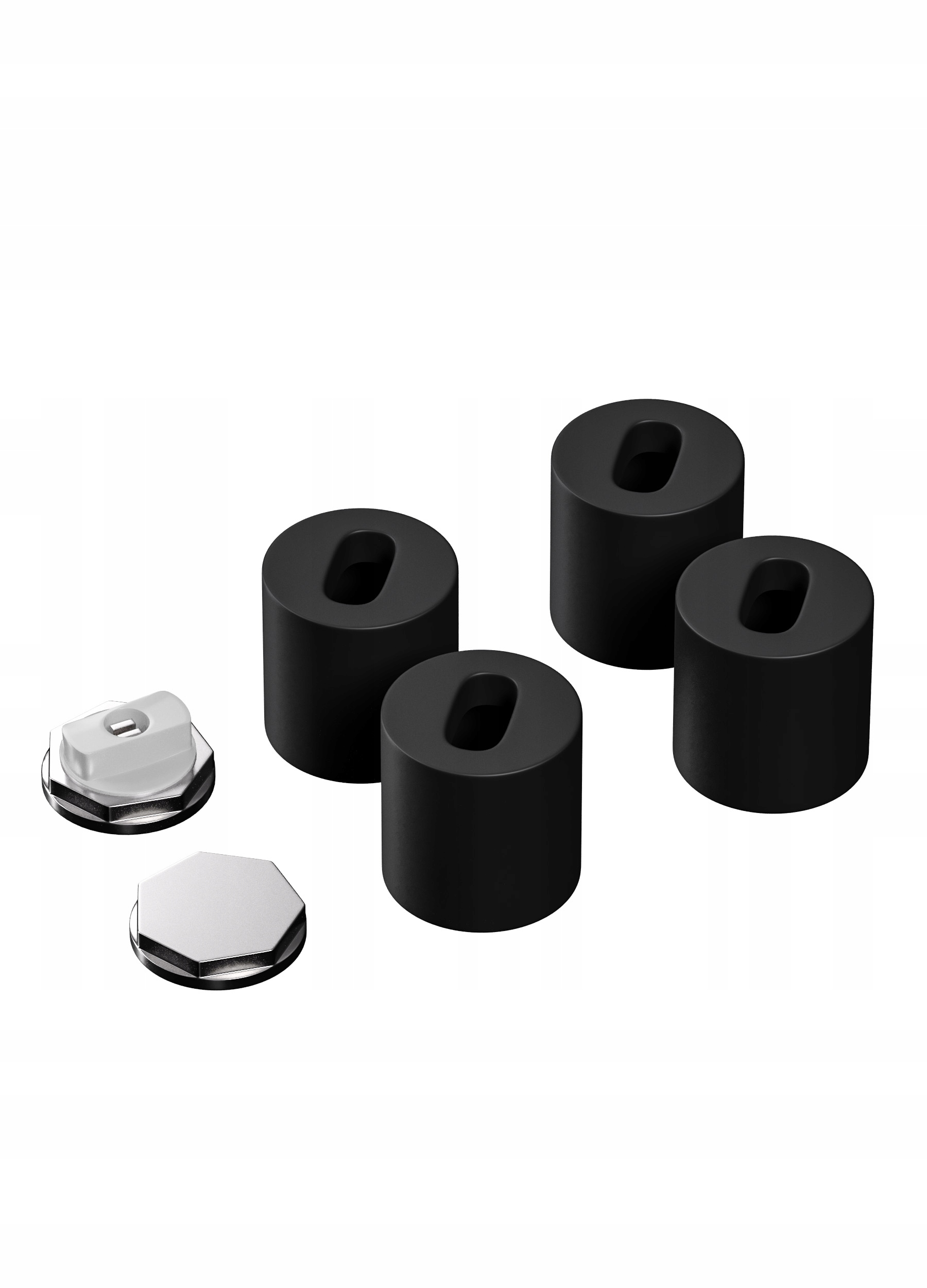

Included:

radiator

modern air vent

4x mounting brackets

plastic caps for safe transport

HEATER/VALVES must be purchased separately – available in our other auctions!

CERTIFIED PRODUCT

The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.

This means you can be sure that you are receiving a product of the highest quality.

The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE (European Certificate) trademark.

All radiators are manufactured in Poland.
