1-hole right-hand chrome thermostatic mixer valve

COMBINED THERMOSTATIC VALVE, 1-HOLE, RIGHT

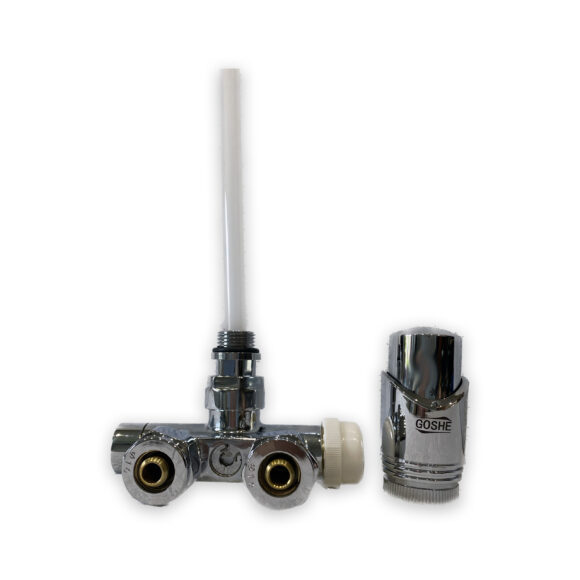

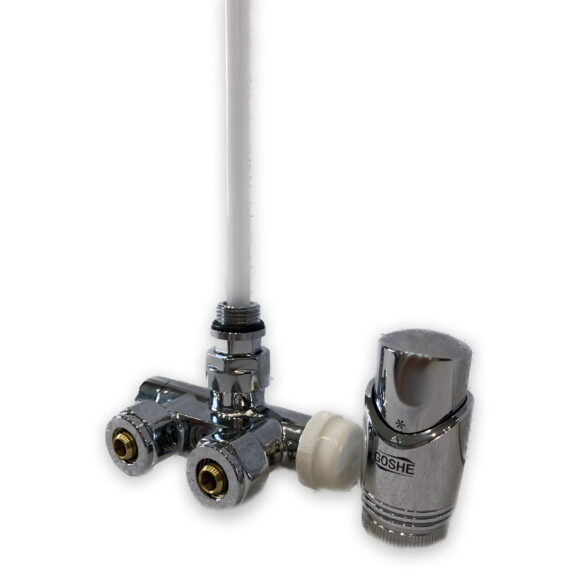

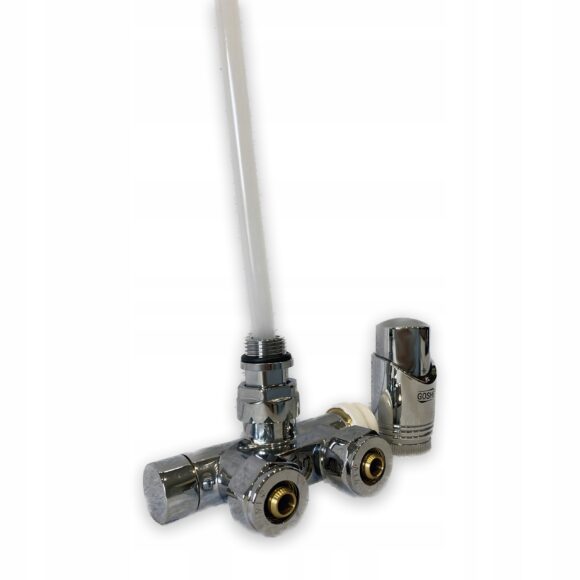

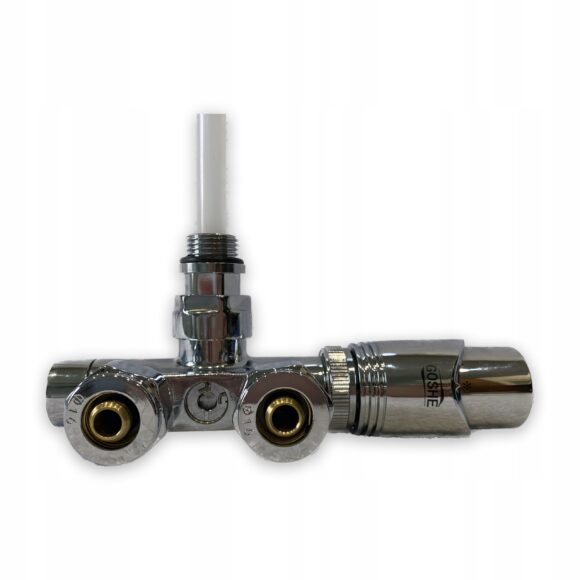

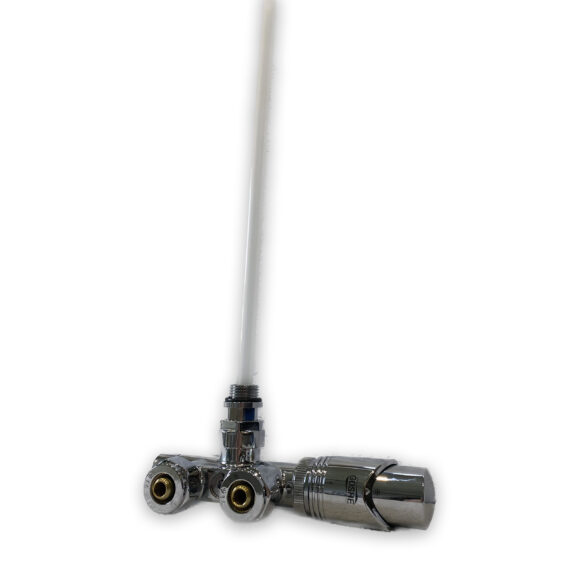

The set includes:

 thermostatic head,

thermostatic valve,

combination valve,

adapters for PEX or PERT multilayer pipe 16x 3/4″ – 2 pcs.

Max pressure: 1 MPa

 Max temperature: 110°C

 Liquid thermostatic head:

 Connection:

 M30x1.5
Max ambient temperature: 50°C

Adjustment scale: * – 5 max

Adjustment range: 9–30°C

Frost protection: in the “*” position

Technical parameters:

 Maximum operating temperature: 120°C

Pressure resistance: PN10

Spindle tightness: 5 cycles 20 kpa

Bending strength: 60Nm

Thermostatic head torsional strength: 7Nm

Thermostatic head bending strength: 250 N

Flow capacity: 0.33 m³
Nominal flow: 0.13 m³/h

Thermostatic head temperature range: 5°C – 32°C

Hysteresis at nominal flow: 0.5 K

Influence of pressure difference: below 1 K

Influence of static pressure: 0.5 K

Temperature difference between the temperature at point S and the closing and opening temperatures: 0.5 K

 Influence of water temperature: 1 K

 Response time: 16 min

Thermal resistance: 1.5 K

Temperature resistance: 1 K

National declaration of performance: 007/2021, PN-EN 215:2020-01
