Bathroom radiators tailored to your needs!

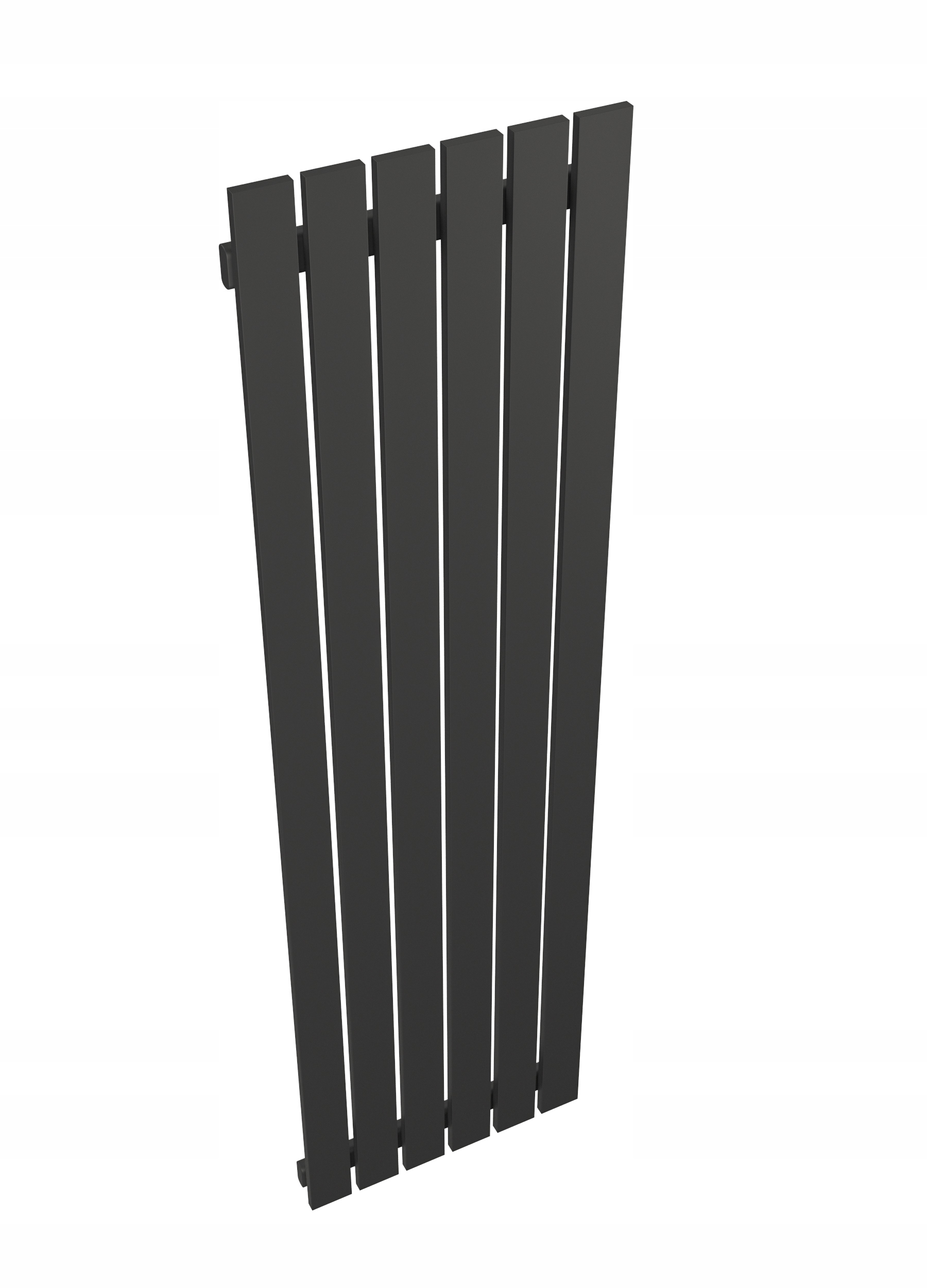

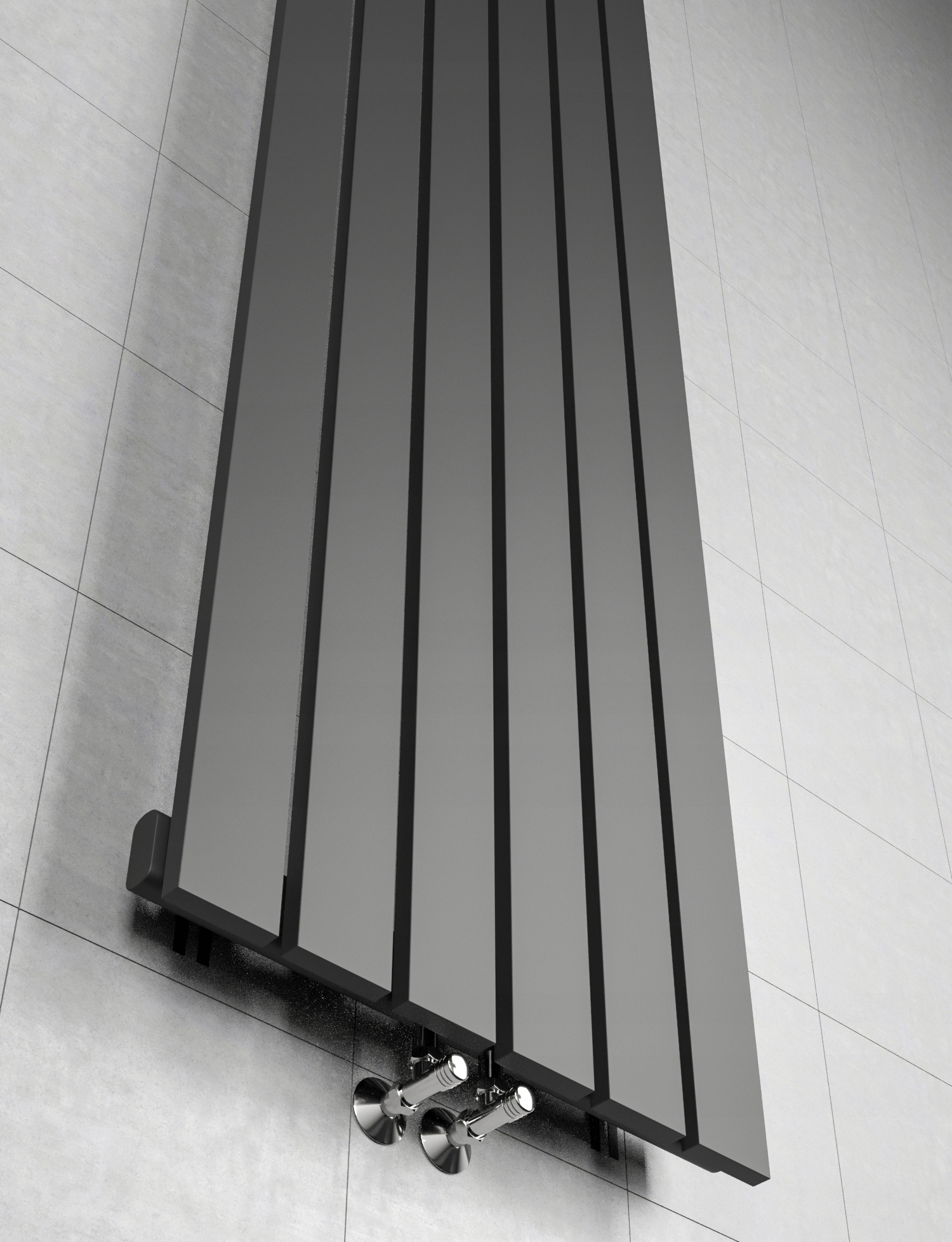

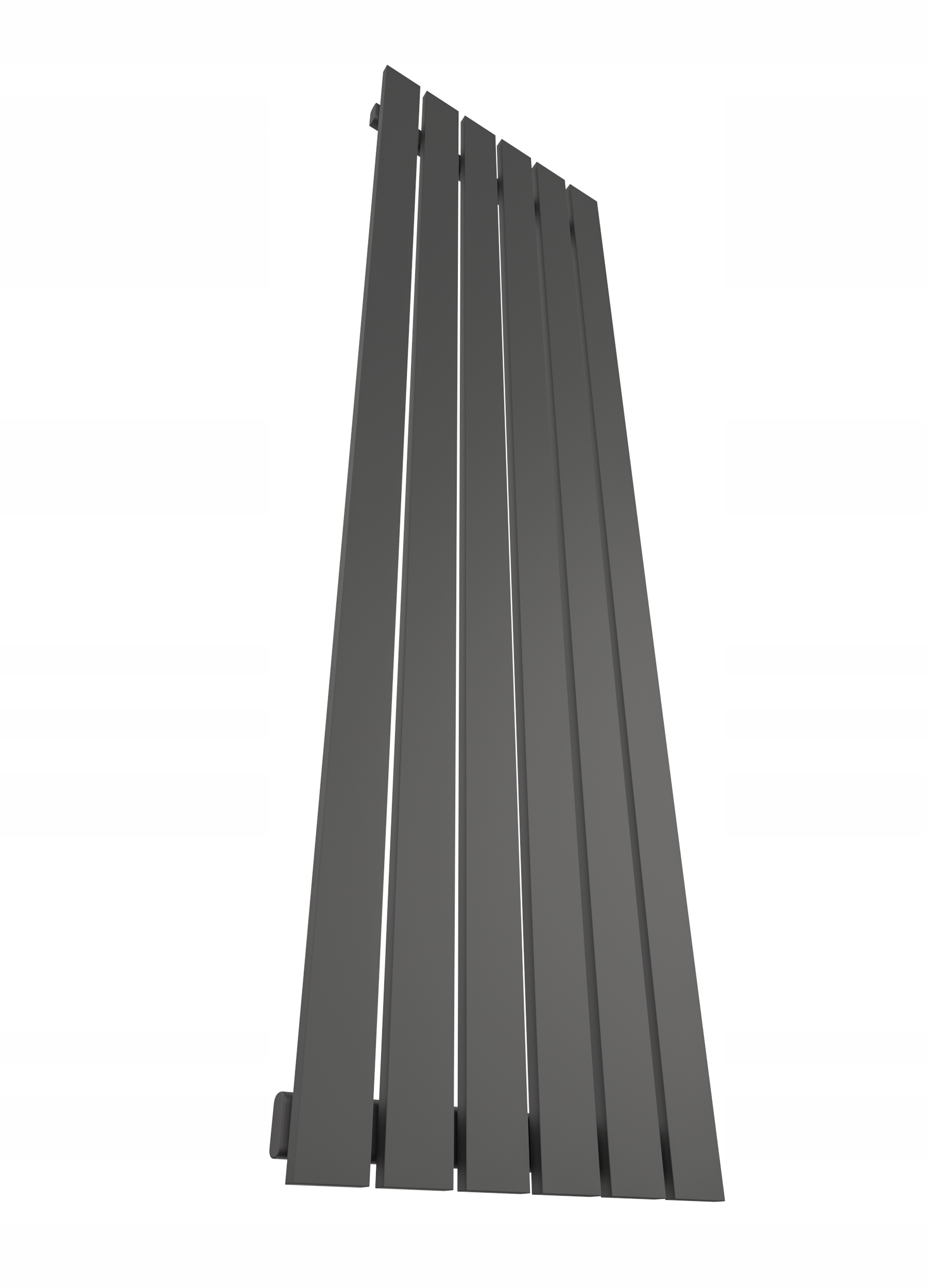

BELLO-S DECORATIVE RADIATOR

Higher quality steel and colour

Model: BELLO-160-S-45

• ➡️Width: 450 mm (A)

  ➡️Height: 1600 mm (H)

  ➡️Connection spacing: 5 cm (centre)

  ➡️Heat output: 1012 watts

  ➡️Colour: matt black

  ➡️Connection: bottom centre

  ➡️Material: steel

  ➡️Type of coating: powder coating

  It is not possible to connect an electric heater to the radiator!

The power of the radiator should be selected according to the size of the room.

The above radiator with a power of 1012W will heat a room with an area of 10 – 10.5 m².

Thermal and pressure parameters of the radiator:

☑️temperature 75/60/20

☑️working pressure 0.6 MPa

☑️test pressure 0.90 MPa

Depending on the installation in your house/flat, you need to calculate the power of the radiator.

☑️75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

☑️55/45/20 – for modern condensing boilers, gas furnaces,

☑️50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

☑️90/70/20 – high temperature system for solid fuel boilers.

The specified radiator output is indicated for the 75/65 parameter; for other parameters, the output should be calculated according to the following information:

Add or subtract the following values from the radiator output depending on your installation:

➡️55/45/20 – 50%

➡️50/40/20 – 60%

➡️45/35/20 – 70%

➡️90/70/20 + 20%

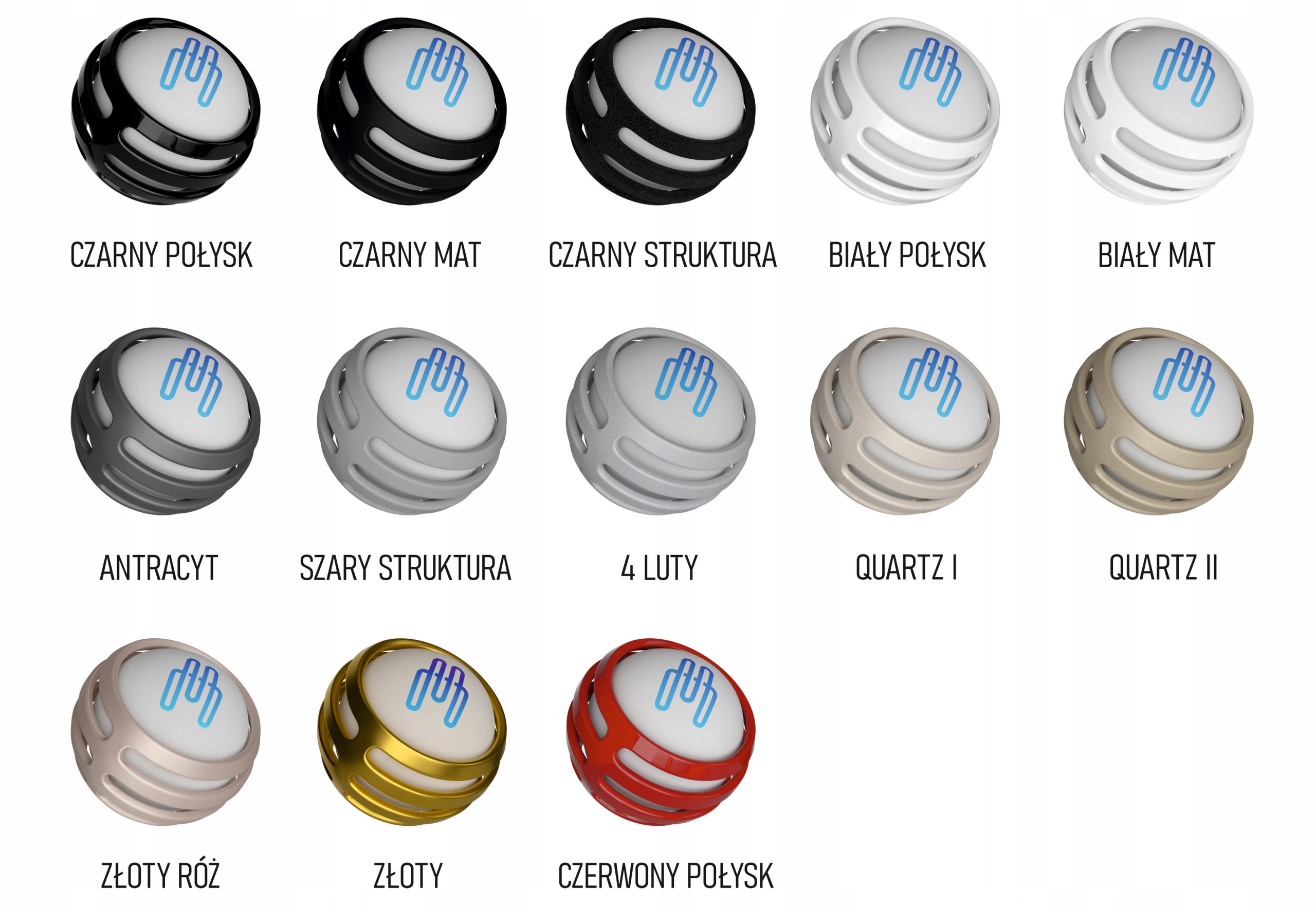

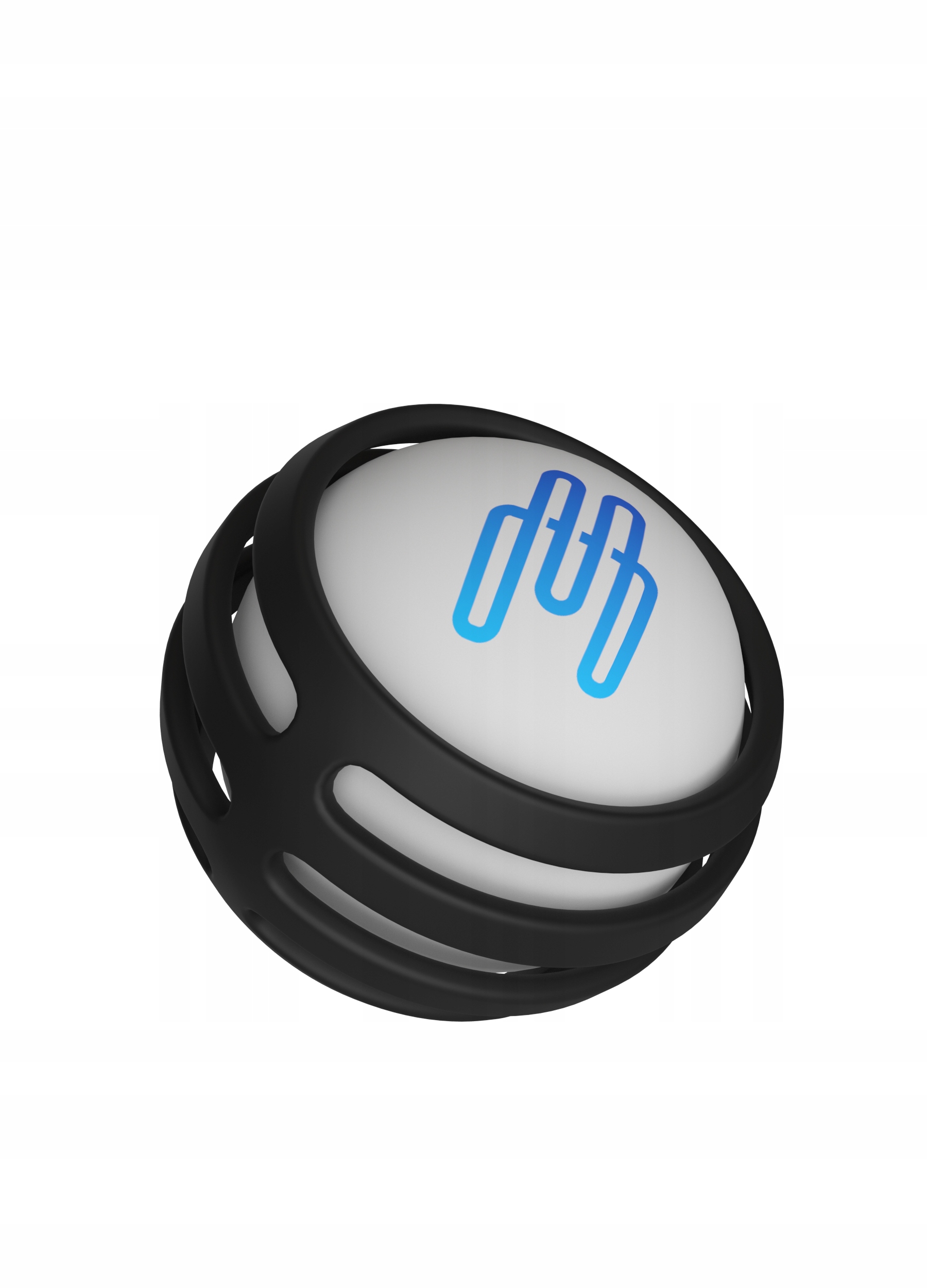

✅modern vent

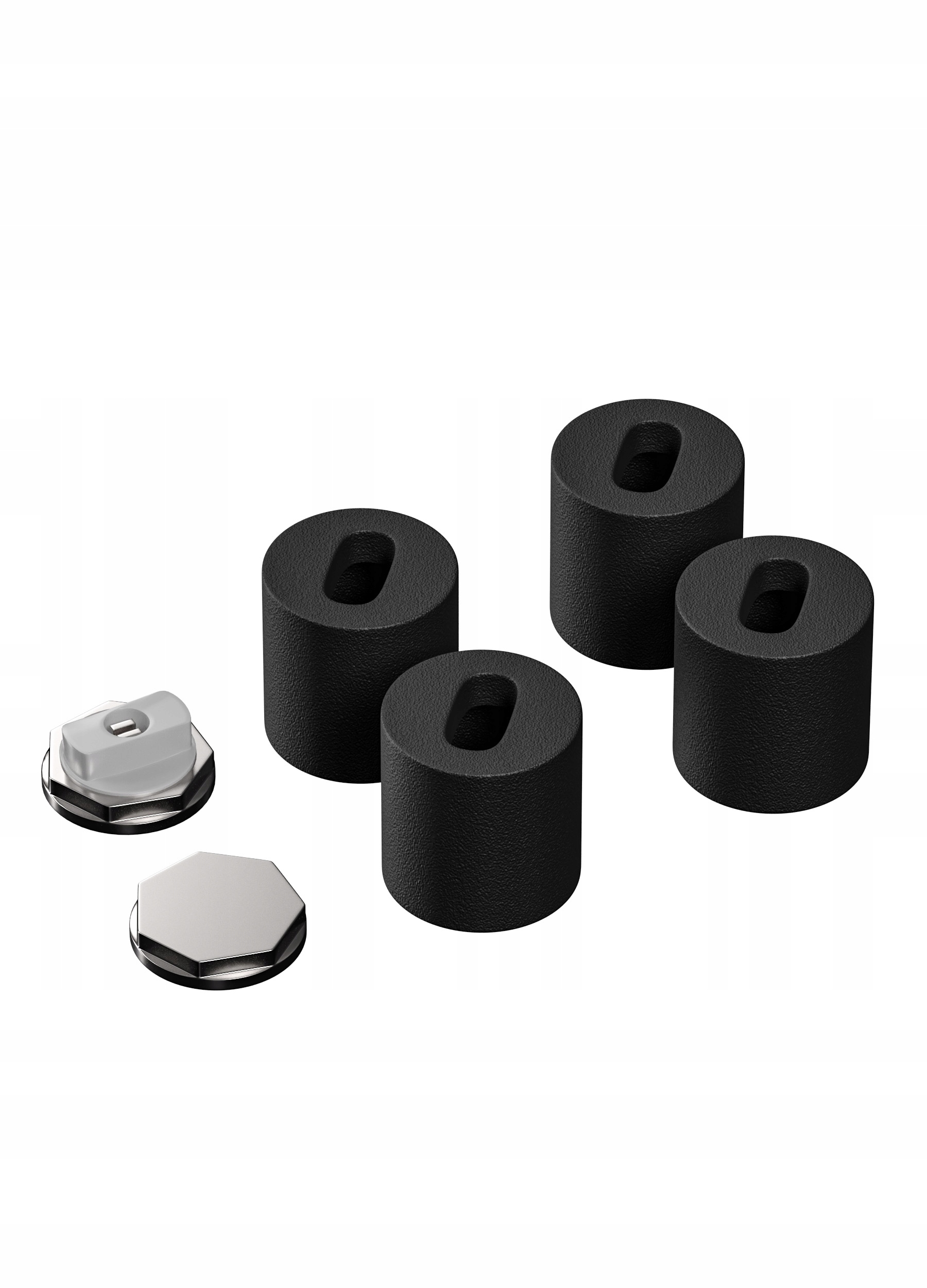

✅mounting brackets

✅plastic caps for safe transport

Valves must be purchased separately – available in our other auctions!

☑️The simple design makes it easy to hang and dry towels.

The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.

This means you can be sure that you are receiving a product of the highest quality.

The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE mark (European Certificate).
