PRODUCER PRO-TERM Bathroom radiators to suit your needs!

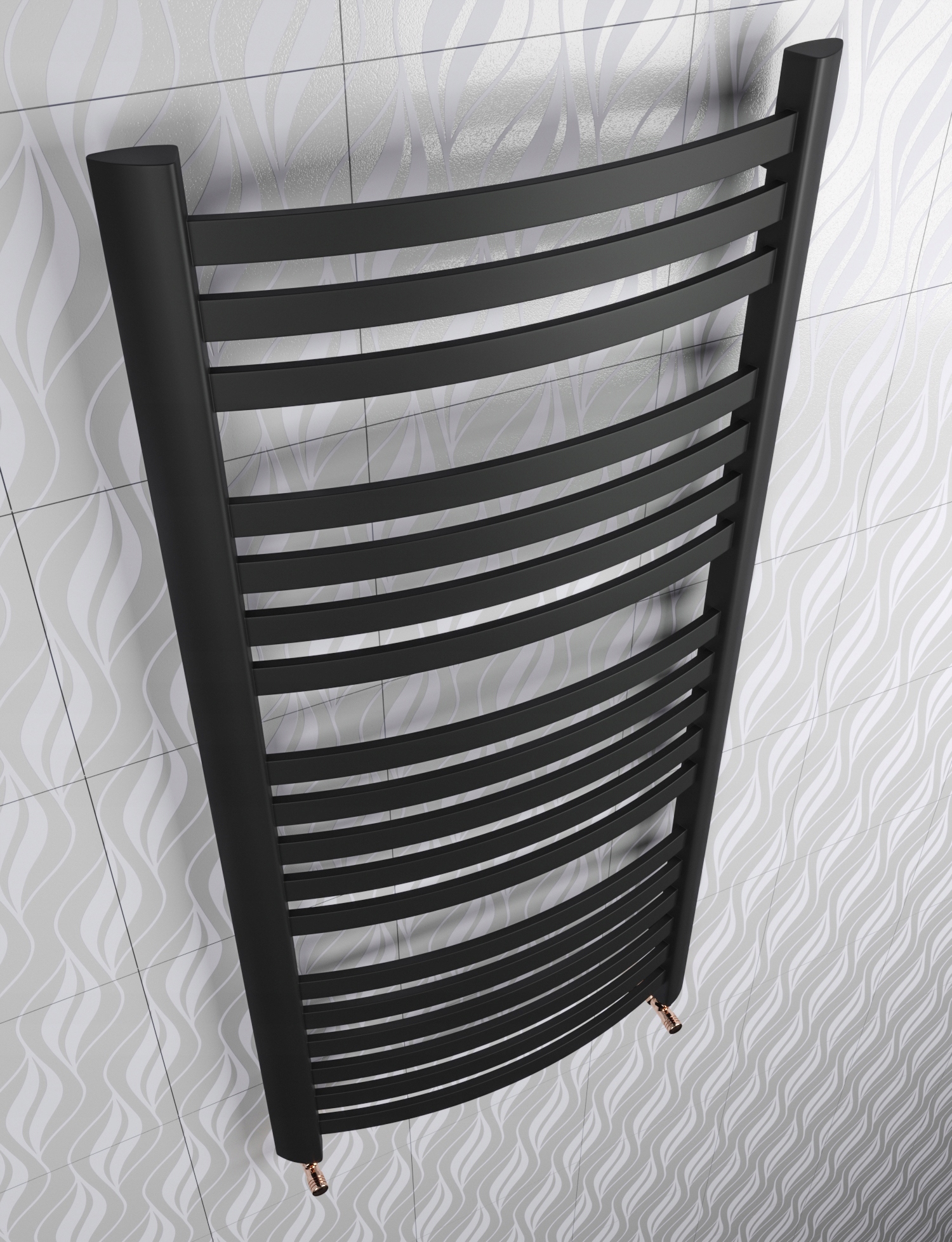

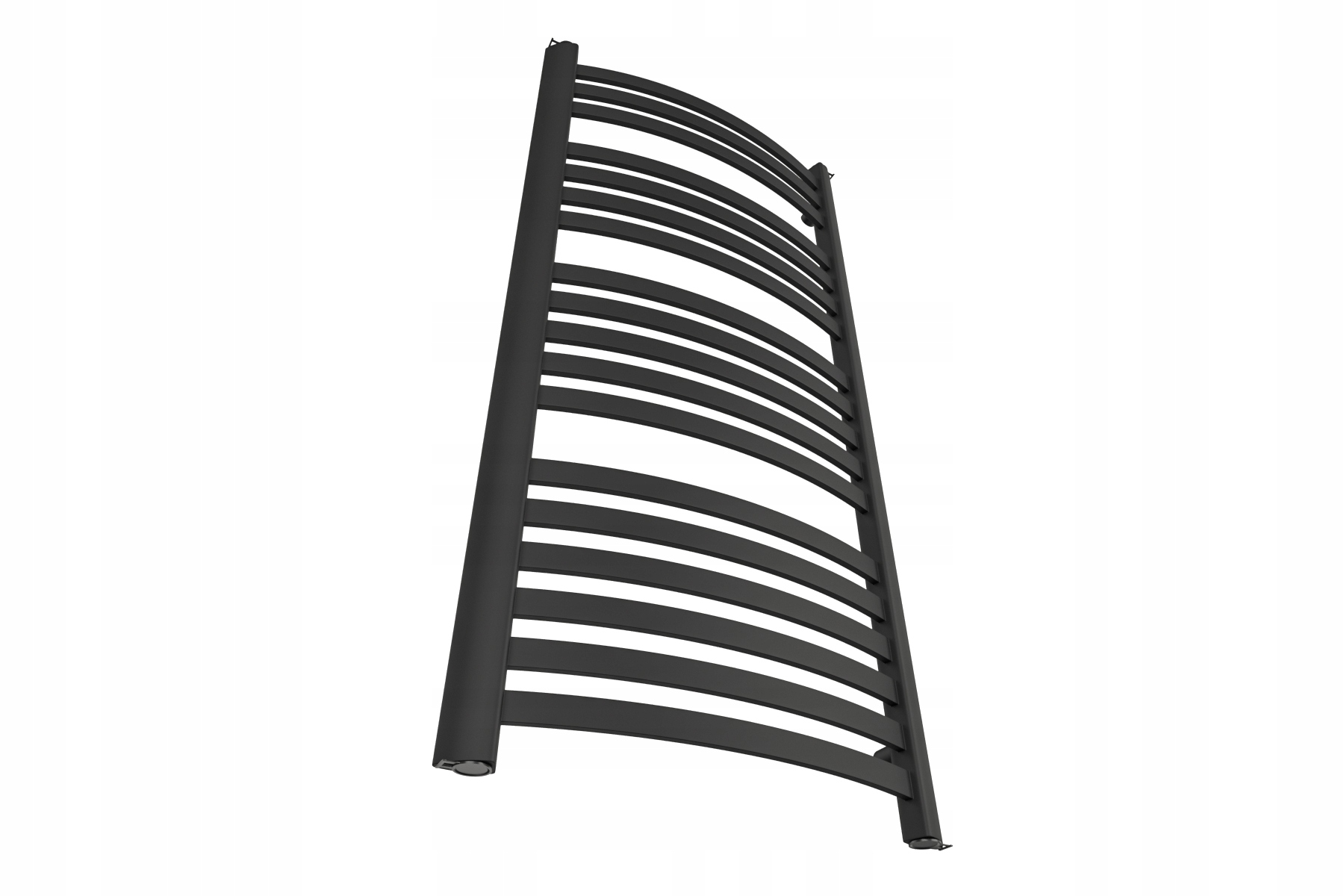

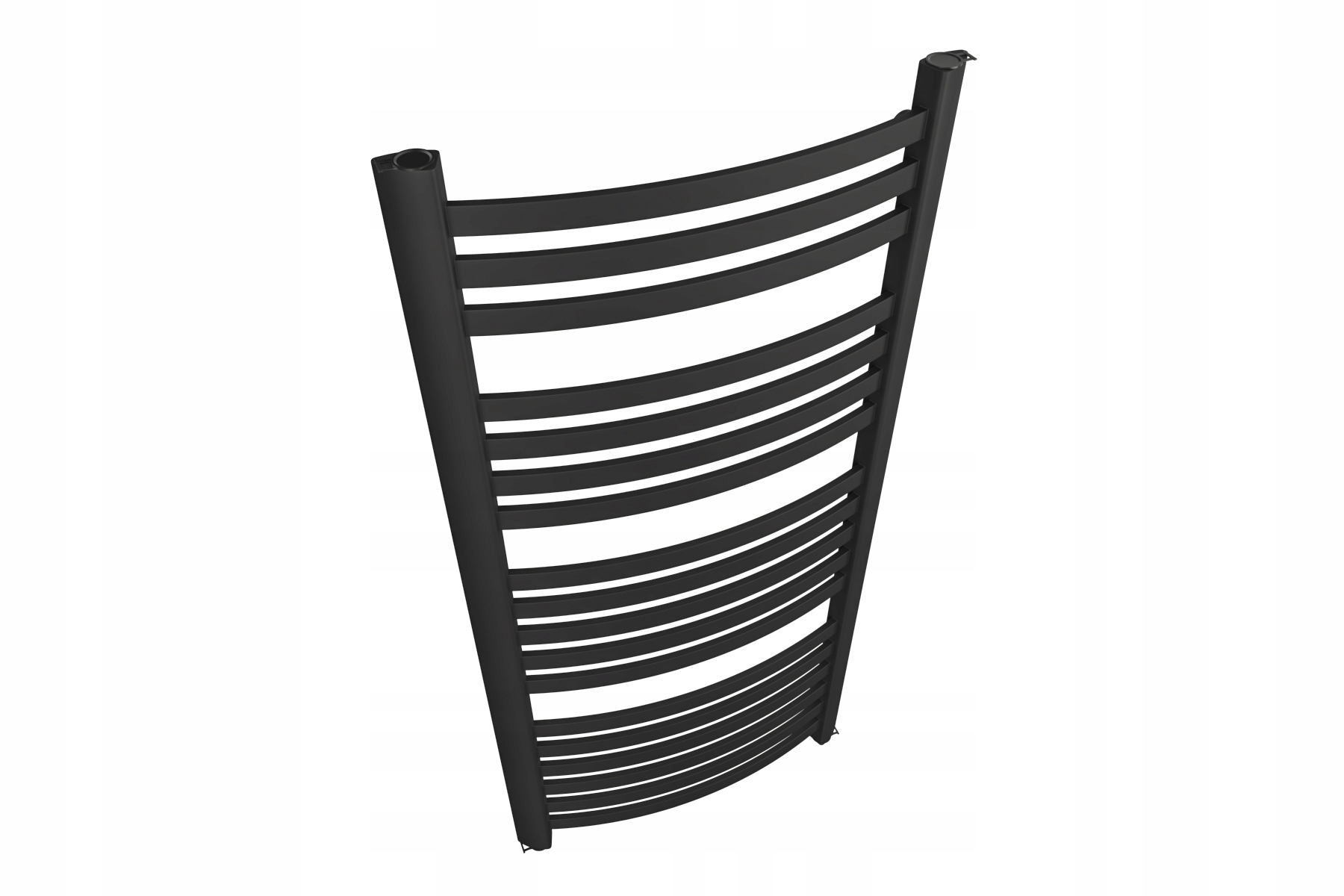

BATHROOM RADIATOR MAXX

Model: MAXX 1150/570

• Width: 570 mm (A)
• Height: 1150mm (H)
• Spacing: 500mm(B)
• Heat output: 556Watts
• Colour: Black Matt

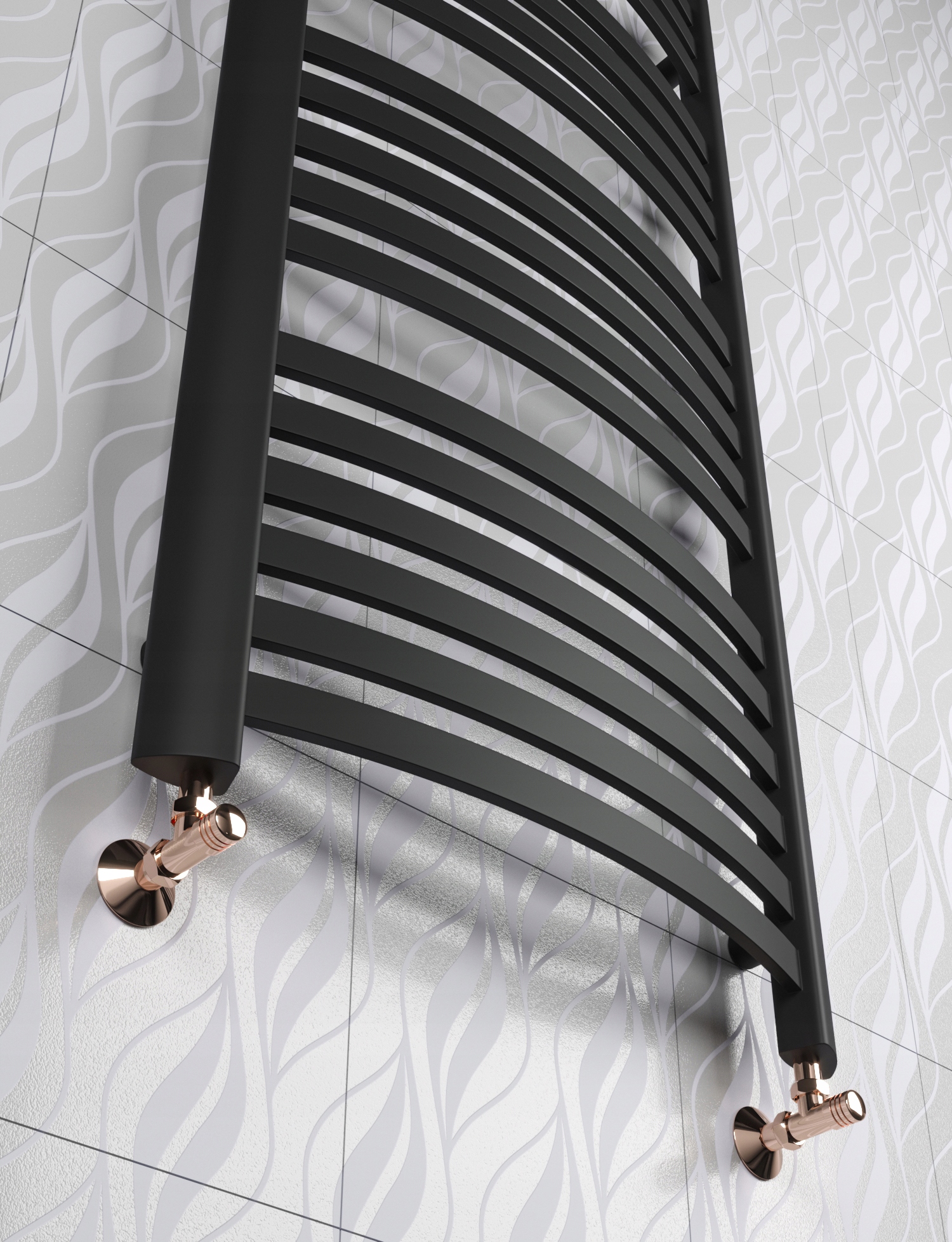

• Connection: bottom
• Thread: 1/2 inch
• Material: Steel
• Type of painting: Powder coating
• Possibility of connecting electric heater

How do I choose the wattage of my radiator?

The power of the radiator should be selected according to the size of the room.

 The above 556W radiator will heat a room of 5.5 – 6 m2.

 Heat and pressure parameters of the radiator

 temperature 75/65/20

working pressure 0.6 MPa

test pressure 0.90 MPa

Depending on the installation you have in your house/apartment, calculate the radiator output.

 75/65/20 – for new solid fuel boilers/gas/oil fired boilers, gas cookers, district heating networks

55/45/20 – for modern condensing boilers, gas cookers,

50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

90/70/20 – high temperature system for solid fuel boilers.

The given radiator output is indicated for parameter 75/65.

For other parameters, the output should be calculated according to the information below:

 The following values should be added or subtracted to the radiator output depending on the installation you have:

• 55/45/20 – 50%
• 50/40/20 – 60%
• 45/35/20 – 70%
• 90/70/20 + 25%

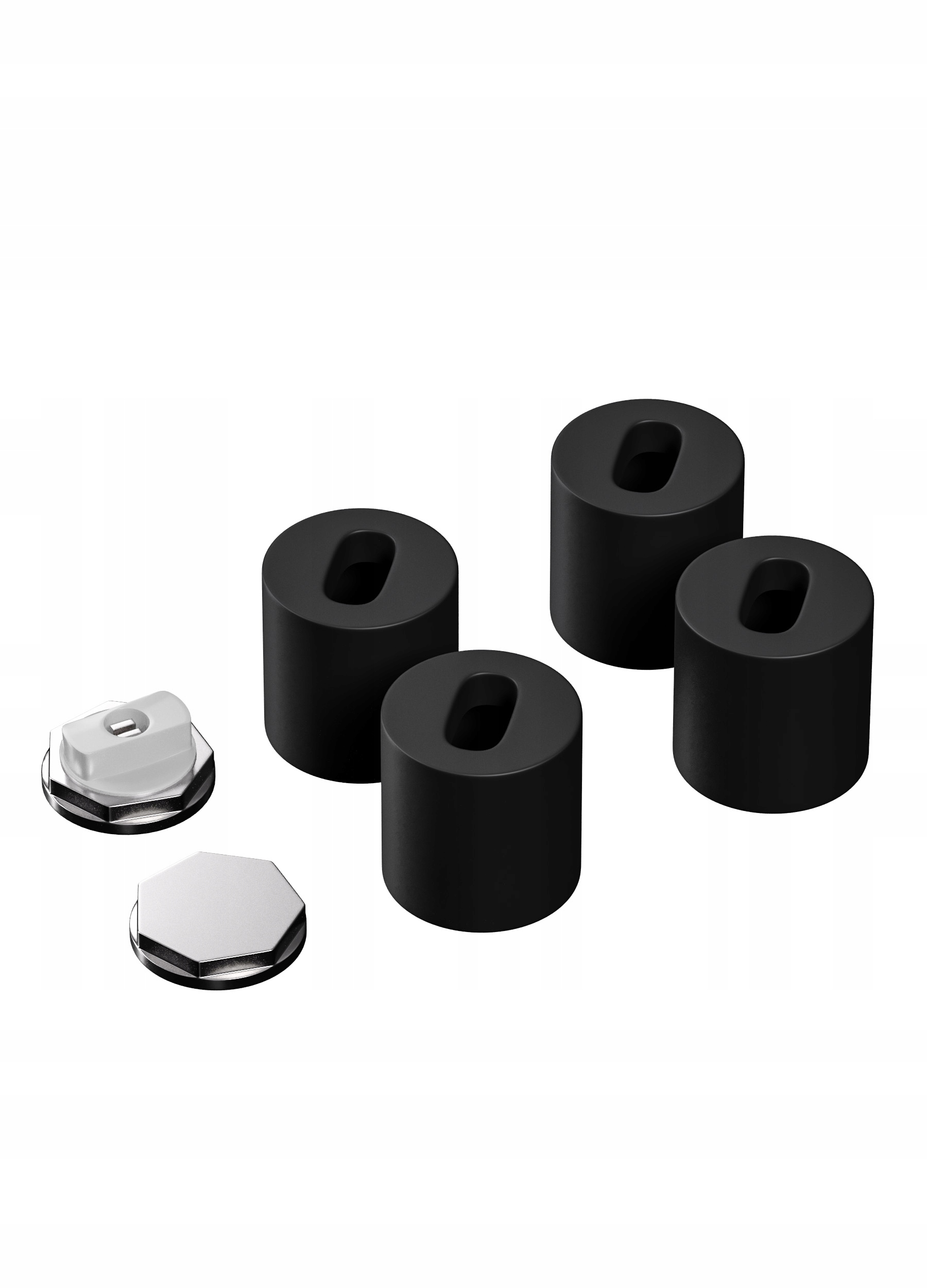

Included with the radiator:

 *modern air vent

 *mounting brackets

 *plastic caps for safe transport.

A functional bathroom radiator with bottom connection that will perfectly heat your bathroom. The simple design makes it easy to hang and dry towels conveniently. The product is designed to be connected to an electric heater, allowing it to be used outside the heating season.

A CERTIFIED PRODUCT

 The bathroom radiators we offer are made from the highest quality materials with extreme care. Our main focus is on quality and the durability and strength of the materials used. In addition, each of our products undergoes very stringent tests before it reaches the customer.

Radiators undergo tests so that our products are fully compliant with the PN-EN 422 European Standard and meet the requirements of the CE mark (European Certificate).

 All radiators are manufactured in Poland.

Purchase our best-selling heaters with delivery within 24 hours.
