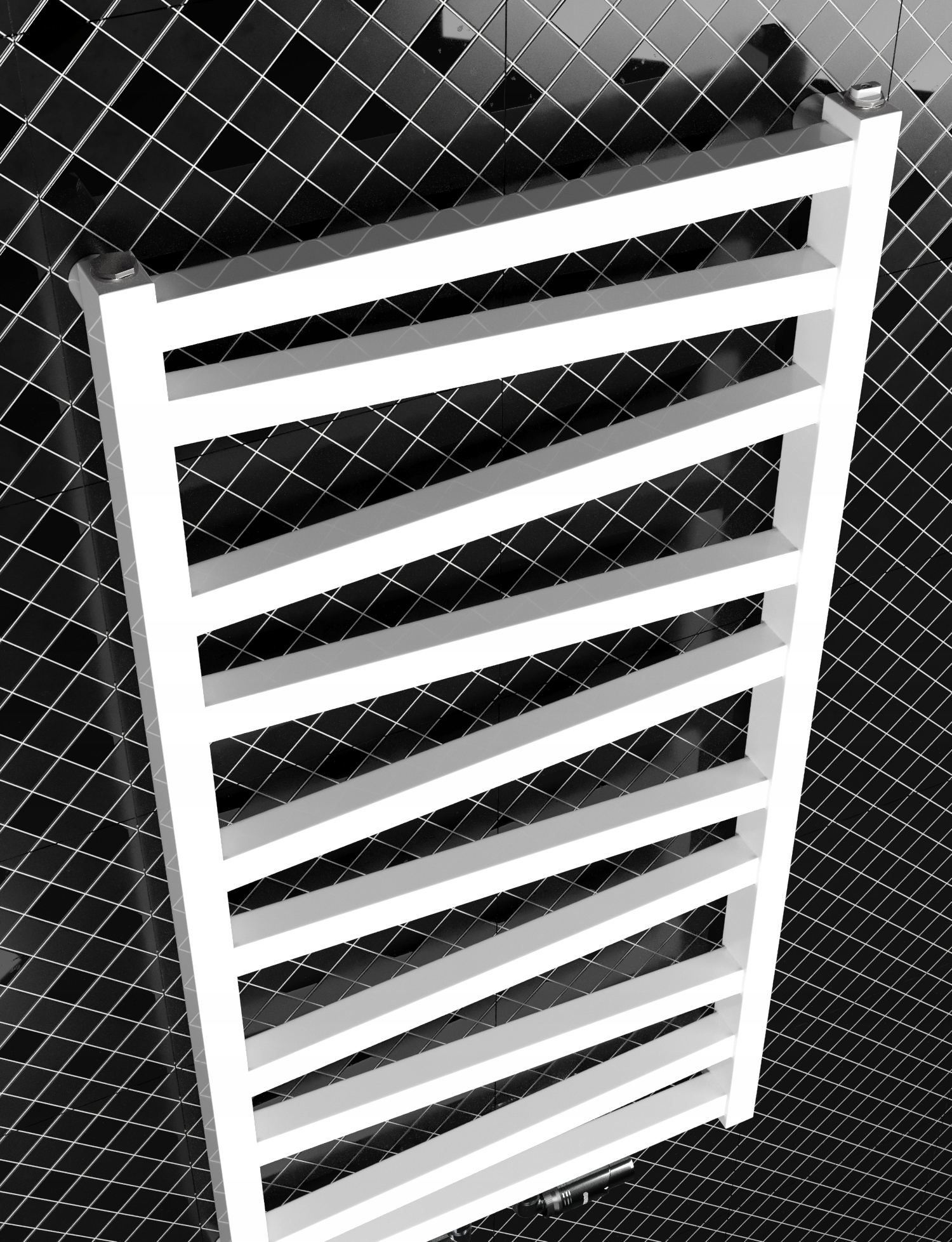

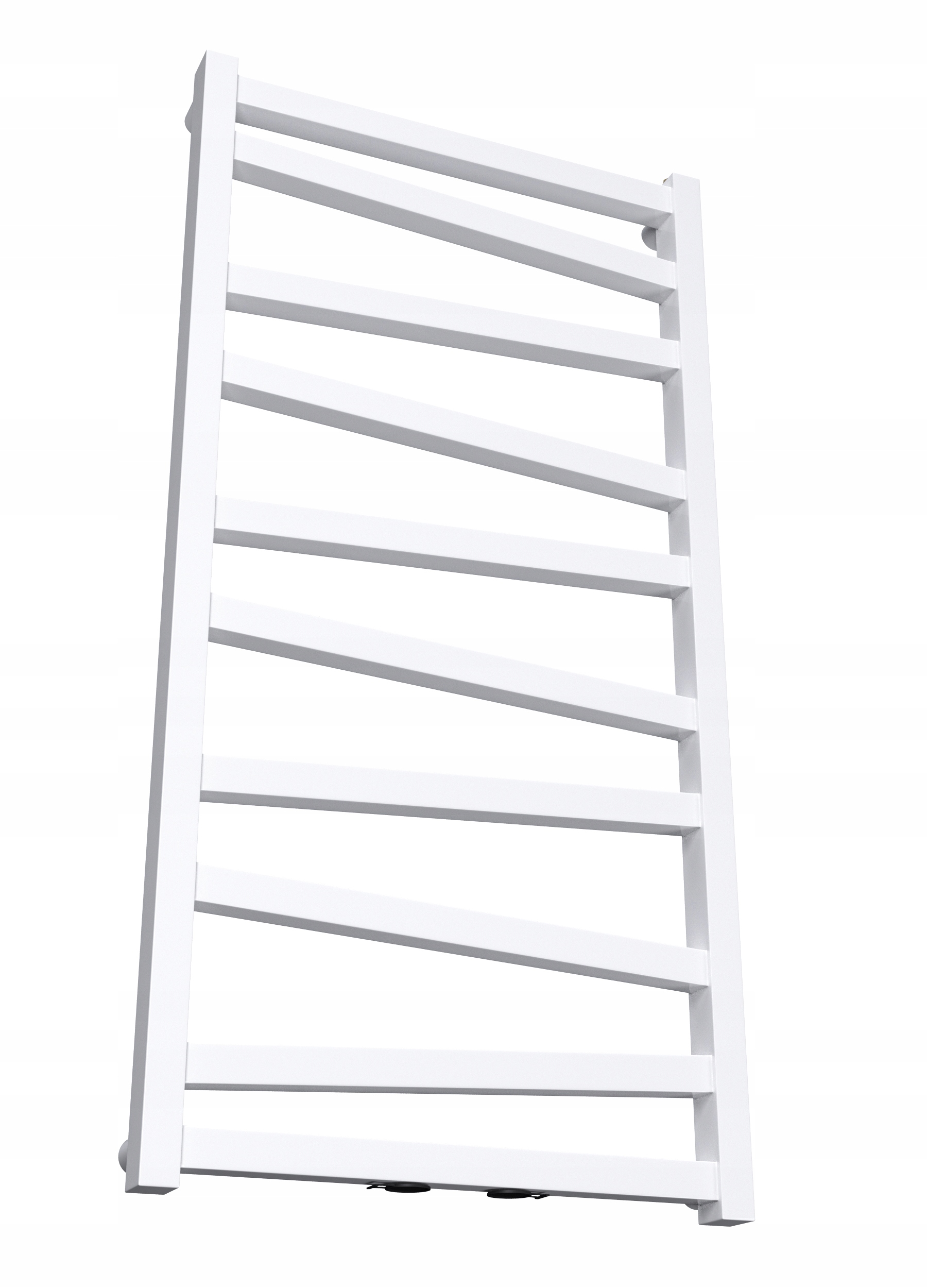

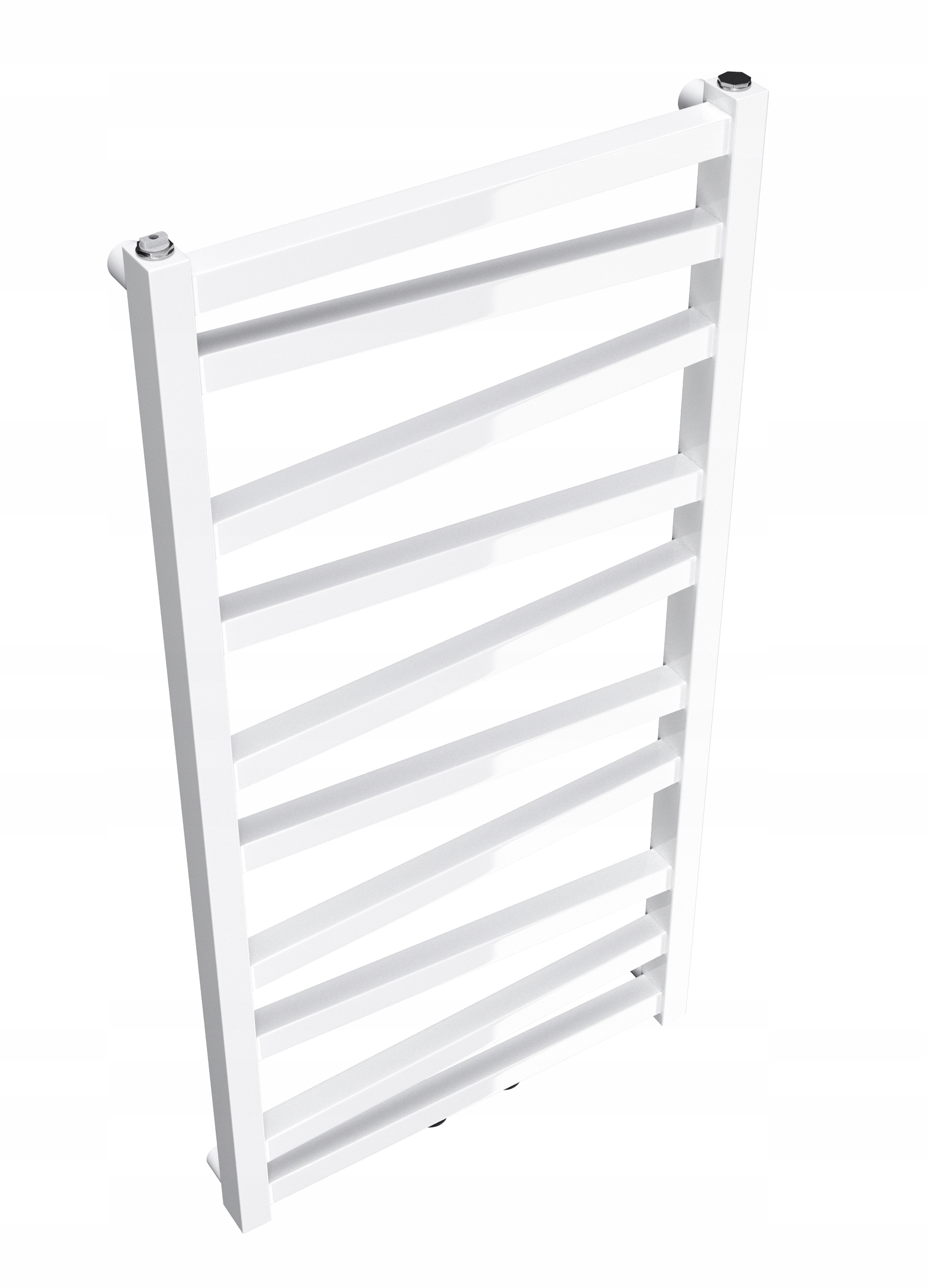

ZYGZAK-MIDDLE DECORATIVE RADIATOR

POLISH PRODUCT

Model: ZYGZAK-MIDDLE: 119/50

• ➡️Width: 500 mm (A)

  ➡️Height: 1190 mm (H)

  ➡️Connection spacing: 50 mm (bottom centre) and 47 cm

  ➡️Heat output: 662 watts

  ➡️Colour: gloss white

  ➡️Connection: bottom

  ➡️Thread: 1/2 inch

  ➡️Material: steel

  ➡️Type of paint: powder coating

How to choose the power of a radiator?

The power of the heater should be selected according to the size of the room.

The above 662W radiator will heat a room with an area of 6 – 6.5 m².

Thermal and pressure parameters of the radiator:

☑️temperature 75/60/20

☑️working pressure 0.6 MPa

☑️test pressure 0.90 MPa

Depending on the installation in your house/flat, you need to calculate the power of the radiator.

☑️75/65/20 – for new solid fuel boilers/gas/oil boilers, gas furnaces, district heating networks

☑️55/45/20 – for modern condensing boilers, gas furnaces,

☑️50/40/20, 45/35/20 – medium and low temperature systems, heat pumps,

☑️90/70/20 – high temperature system for solid fuel boilers.

The specified radiator output is indicated for the 75/65 parameter; for other parameters, the output should be calculated according to the following information:

Add or subtract the following values from the radiator output depending on your installation:

☑️55/45/20 – 50%

☑️50/40/20 – 60%

☑️45/35/20 – 70%

☑️90/70/20 + 20%

Included:

✅modern vent

✅mounting brackets

✅plastic caps for safe transport

✅proof of purchase (e-invoice)

Valves must be purchased separately – available in our other auctions!

CERTIFIED PRODUCT ⭐⭐⭐⭐⭐

The bathroom radiators we offer are made of the highest quality materials with great care. We place the main emphasis on the quality, durability and strength of the materials used. In addition, each of our products undergoes very rigorous testing before it reaches the customer.

This means you can be sure that you are receiving a product of the highest quality.

The radiators are tested to ensure that our products are fully compliant with European Standards PN-EN 422 and meet the requirements of the CE mark (European Certificate).
